Solar Inverter

‹

›

‹

  • ASP-50/60KTLC,70/75KTLC-HV

›

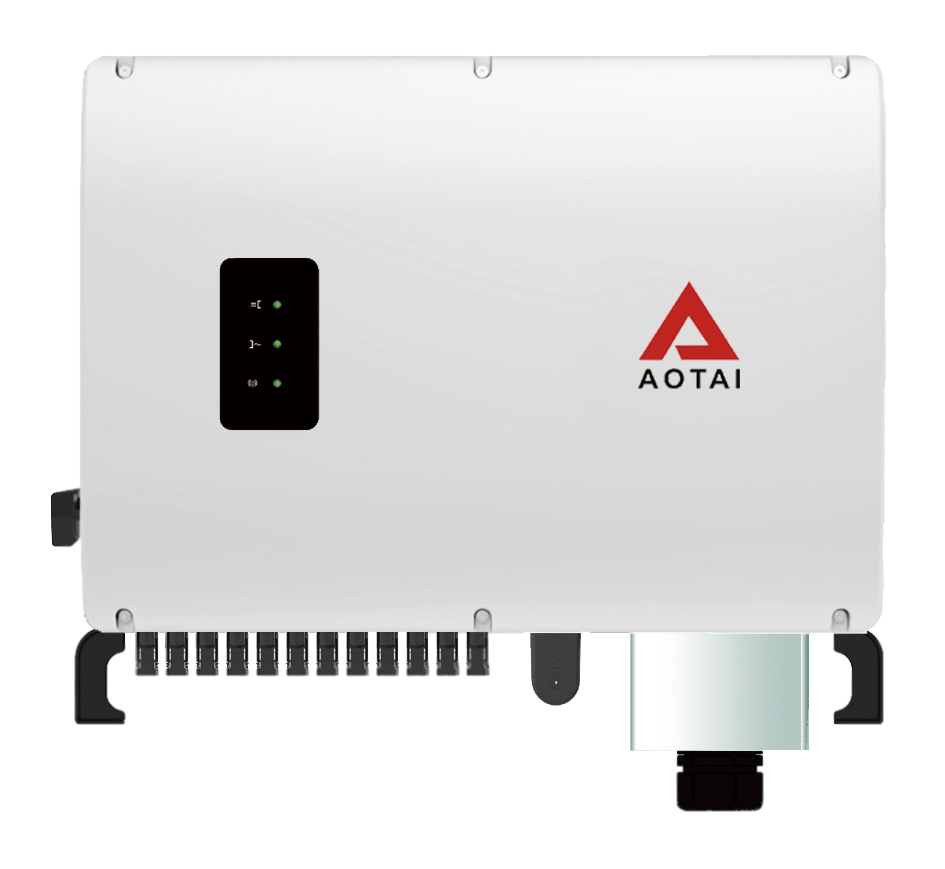

ASP-50/60KTLC,70/75KTLC-HV

Share：

Inquiry
Features
Specification
Application
Download

Flexible design

  • Multi-communication interface:  RS485, GPRS(optional), Wifi(optional)  DC breaker, easy to maintain and safe to use

  • Integrated functions of combiner  box& DC lightning protection, reduce  system cost for users

Efficient conversion

  • Transformerless,max.  efficiency is up to 99%

  • Euro. efficiency is up to  98.5%

  • Total current THD <2%

  • Three-level SVPWM control technology, increase DC voltage utilization

Grid friendly

  • LVRT HVRT function

  • Adjustable reactive power,  power factor from 0.8 leading to 0.8 lagging

  • Active and passive anti-islanding protection

  • Continuously adjustable active power (0-100%) function

Excellent qualities

  • CQC Gold Sun Certification

  • TUV Certification

  • SAA  Certification

  • CE Certification

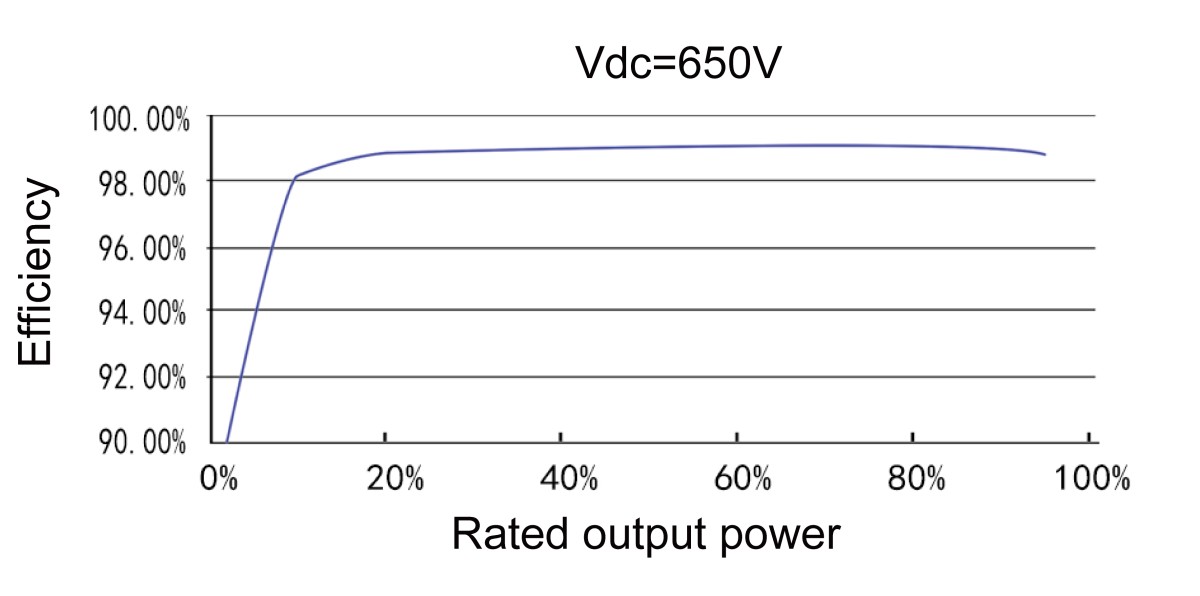

EFFICIENCY CURVE





Model Name50KTLC60KTLC70KTLC-HV75KTLC-HV
Input
Max. DC input power  65000W78000W91000W97500W
Max. DC input voltage1100V
Max. DC input current45/45/45A
MPPT voltage range250~1000V
Recommended MPP operating voltage650V740V
No.of MPPT3
Max. no. of strings per MPPT34
Output
Rated output power50000W60000W70000W75000W
Max. output power55KVA66KVA77KVA82.5KVA
Max. output current80A96A89A95A
Rated grid voltage400V500V
Grid voltage range310~480Vac422~550Vac
Rated grid frequency50Hz/60Hz
Grid frequency range45~55Hz/55~65Hz
THD< 2% (Under the rated power)
Power factor>0.99(rated power) /0.8 leading ~ 0.8 lagging
DC current injection< 0.5% (Under the rated power)
System data
Max. efficiency98.7%98.9%99%
Euro. efficiency98.3%98.5%98.5%
Humidity range0-100% non-condensing
Cooling typeIntelligent forced air cooling
Temperature range-25~+60°C
Power consumption at night< 1W
Max. working altitude4000m
DisplayLED/LCD(optional)
Communication interfaceRS485/Wifi/GPRS(optional)
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Output over voltage protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Surge protectionYes
Grid monitoringYes
Islanding protectionYes
Temperature protectionYes
Integrated DC switchYes
Mechanical data
Dimensions (WxHxD)681x660x282mm
Weight47kg
Protection classIP66
Standard
Grid-connected standardNB/T32004-2018; IEC61727
Safety standardNB/T32004-2018; IEC 62109-1/2
Electromagnetic compatibilityIEC 61000-6-2/4
