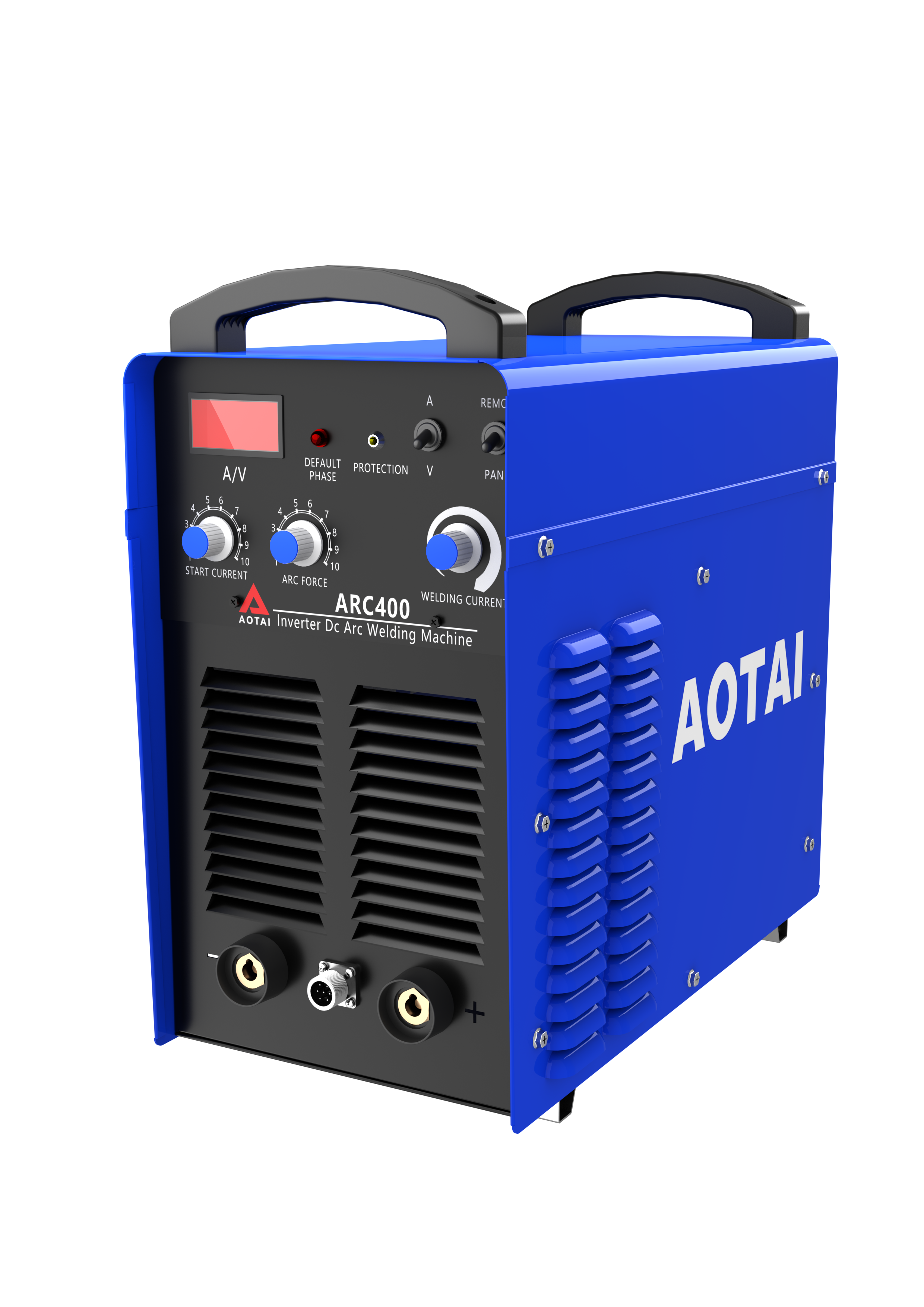

ARC-400/500/630

ARC series gives a highly stable DC arc and ensures perfect welding in all situations and positions. lt is new generation developed specially to meet harsh industry requirement and performs full power against voltage fluctuation and long distance welding (up to 100m).


Output t34.png  t33.png  t17.jpg       Input t39.png  t41.png       Process t21.jpg  t60.png




Share：

Inquiry
Features
Specification

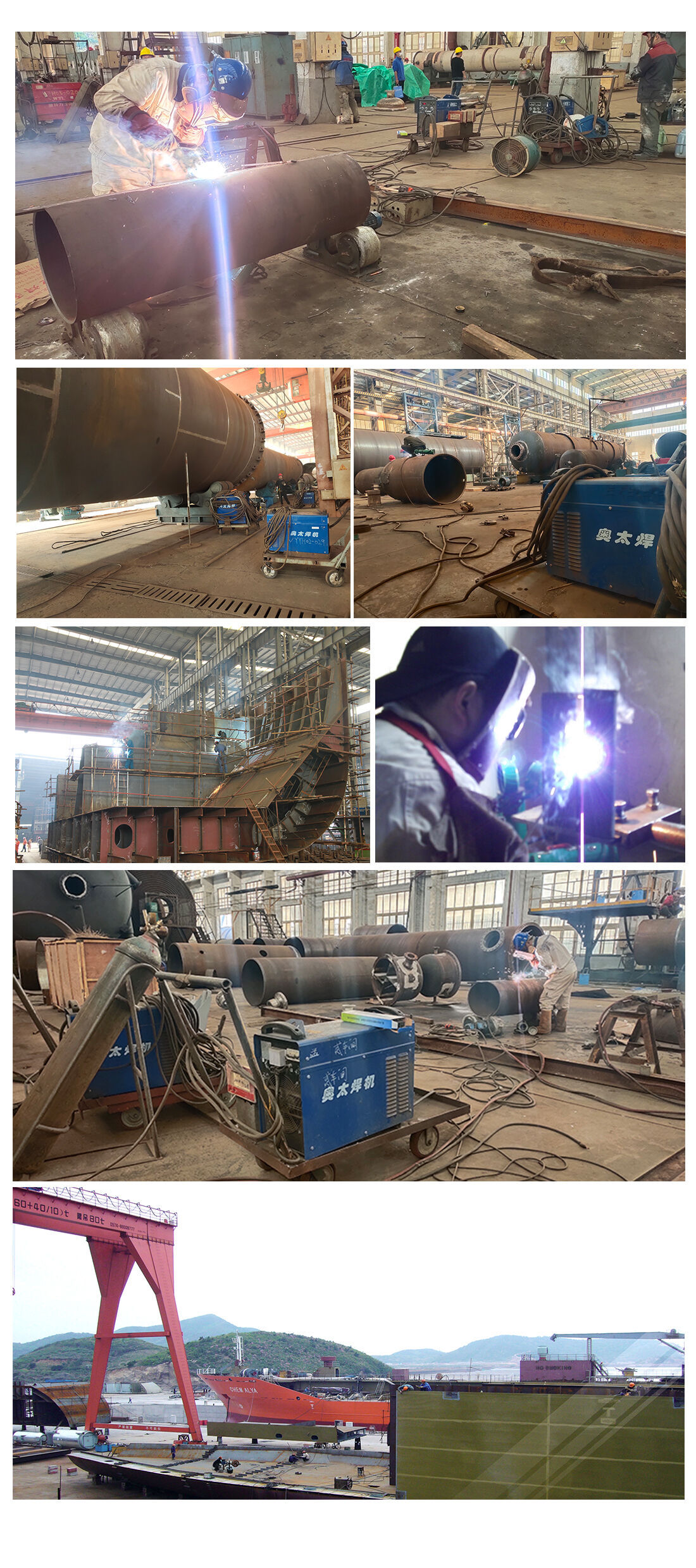

Application
Accessories
Download


  • Wide suitability: BAS & RUT electrodes welding

  • Hot arc starting: stepless adjustment and 100% arc starting success rate

  • Arc force: continuously adjustable in MMA mode, which provides anti-stick, unbroken arc, and stable arc for long cable welding

  • Digital display: current and voltage

  • Remote control: wired and wireless(optional)

  • Multiple protections: against overheating, over-current, and over-voltage

  • VRD function: optional

  • Long welding cable: up to 100m

  • Cutting-edge technology: full-bridge inverter soft switch control technology, double IGBT modules, and quick recovery diode module

  • High reliability: adopting multiple insulation materials to protect PCB and main circuit

  • Work with generator: optional



ARC400ARC500ARC630
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)18.724.634.2
Rated input current (A)28.437.452
Duty cycle (40̊C)60%@400A60%@500A100%@630A
OCV (V)688396
Output current range (A)20-40020-50050-630
Efficiency89%
Protection classIP23
Insulation classH
Dimension (mm)660*320*560660*320*560660*320*560
Weight (kg/lb)43 /9550 /110.458 /128.1



Standard Equipments

  •  1 Power source

  •  1 Connected primary cable L=3m

  •  1 Welding cable L=3m

  •  1 Ground cable L=3m
