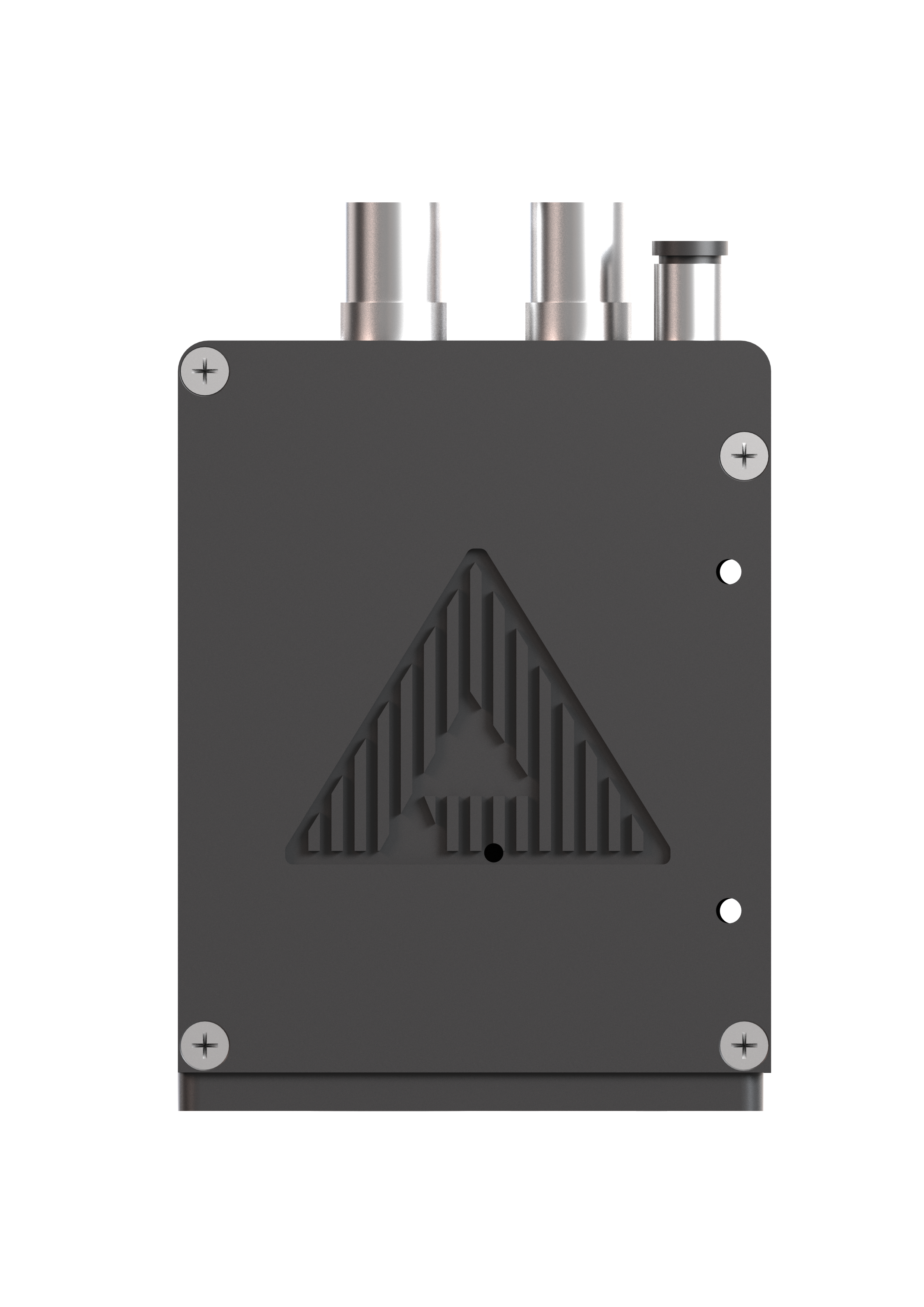

Laser Tracking System

Share:

Inquiry
Features
Specification
Application
Accessories
Download

  • Robust Design: engineered with superior EMC shielding, making it suitable for adverse environments like dual-wire gas shielded welding. Integrated air-cooling ensures optimal performance in high-temperature scenarios.

  • User-friendly Software Interface: multilingual UI with procedural parameter configurations.

  • Precision-Driven Performance: equipped with state-of-the-art hand-eye calibration algorithms, guaranteeing high fidelity positioning and exceptional interference resilience under high arc luminosity conditions.

  • Seam Versatility: supports a spectrum from standard seams to user defined template matching.





Model
aTrac-150aTrac-250
Mounting Height (H)150mm250mm
Depth of Field (K)170mm (100-270mm)140mm (200-340mm)
Central Field of View (W)65mm50mm
Minimum Gap Detectable (mm)0.50.4
Minimum Offset Detectable (mm)0.80.8
Inbreaking ProtectionIP65IP65
Operating Temperature (℃)0-500-50
Humidity Adaptability10%-95%10%-95%
ProtocolTCP/IP, Modbus TCPTCP/IP, ModbusTCP
Weight (kg /lb)45.5 /100.351.5 /113.5
Arc Welding TypeGMAWGMAW, GTAW, SAW
