K114 /K168+WZM400

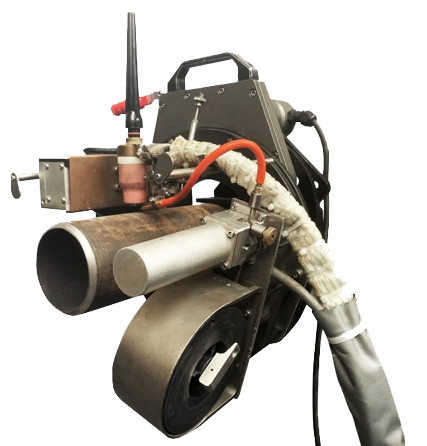

The automatic open head all-position TIG orbital welding system for small-diameter pipeline, which is mainly applied in girth seam automatic welding of water, petroleum, natural gas and other pipelines. It is one of the advanced equipment to realize all-position automatic welding.

Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • Stable wire feeding and welding: the wire feeding and the travel of the welding head are driven by a constant torque motor; an encoder is equipped for stable downward welding and upward welding

  • Outstanding quality for all-position welding: the welding head can calculate the traveling position according to the rotation angle, and can provide accurate position signal in the process of all-position welding

  • Flexible adjustment of the wire feeding tip: the wire feeding angle setting device can be applied to adjust the wire feeding tip in all directions

  • Customizable welding head: applicable for different pipe diameters ranging from 30mm to 168mm

  • Capable of matching with WZM400 power source


Model
K114K168
Application range (mm)Φ30-114
Φ60-168
Welding thickness (mm)2-8
Output current (A)
5-400
Torch rotating speed (rpm)0.01-0.5/5
Applicable pipe formsPipes butt welding
Applicable materialsCarbon steel, stainless steel
Welding processesCC TIG, pulse TIG
Automatic wire feeding functionYes
Arc trackingTrack in vertical
Horizontal oscillating travel (mm)42
Arc length travel (mm)42
Adaptability for generator poweringAdaptable
