K130 /K168+AMIG350Pipeline
The open-head pipeline GMAW system is an automatic full-position welding equipment specially developed for on-site installation and prefabrication of small-diameter pipes. It can realize root welding, filler welding, and cosmetic welding for the carbon-steel pipeline with a small diameter (φ30mm-φ168mm).

Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Robust design: the lightweight design and high protection level, more suitable for the outdoor construction site

  • Outstanding performance: the fully digital control system offers precise control and stable arc length

  • Higher extensibility: FPGA control platform

  • Easy and safe to control: 7-inch human-machine interface and password protection function

  • Parameters inter-transmission: import and export welding parameters through a U-disk

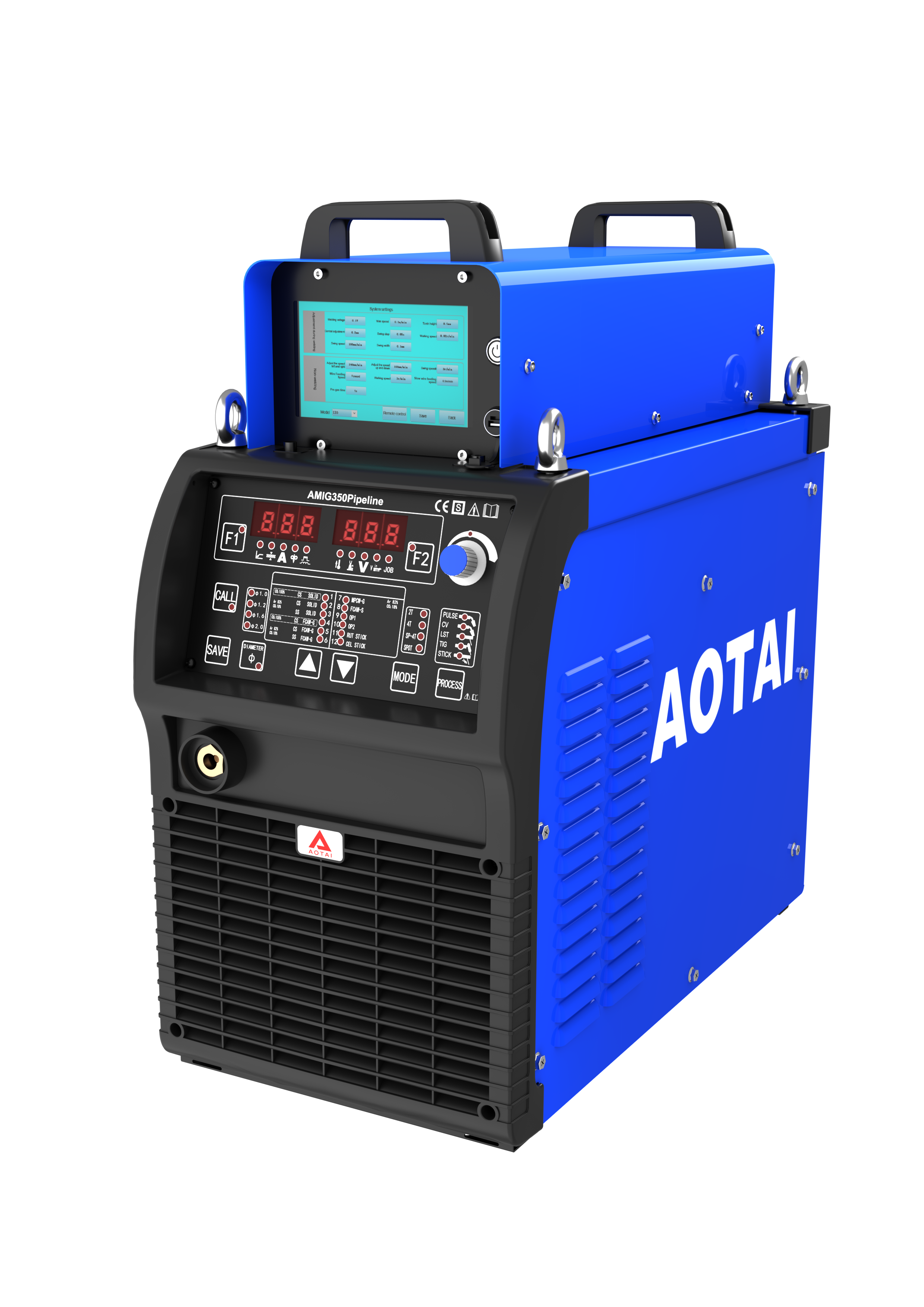

AMIG350Pipeline
Welding power source
Rated input voltage /frequency of welding machine (V)AC380V±10%
Rated input voltage /frequency of control box (V)AC220V±15%
Rated duty cycle60%
Output voltage /current range60A 17V-350A /31.5V
IP ratingIP23
Insulation classH
Dimension (mm)630*280*480
Weight (kg/lb)48.5 /106.9

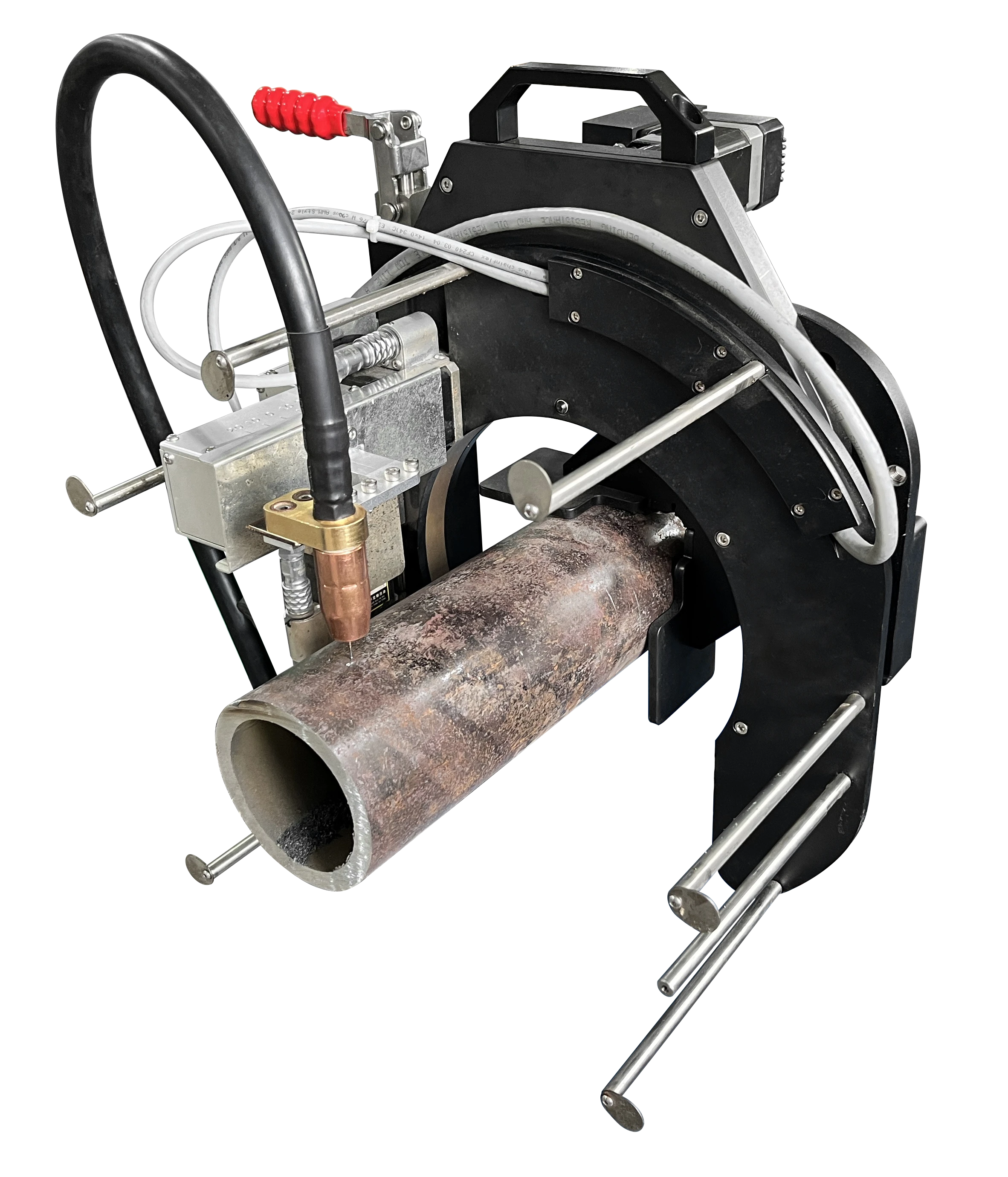

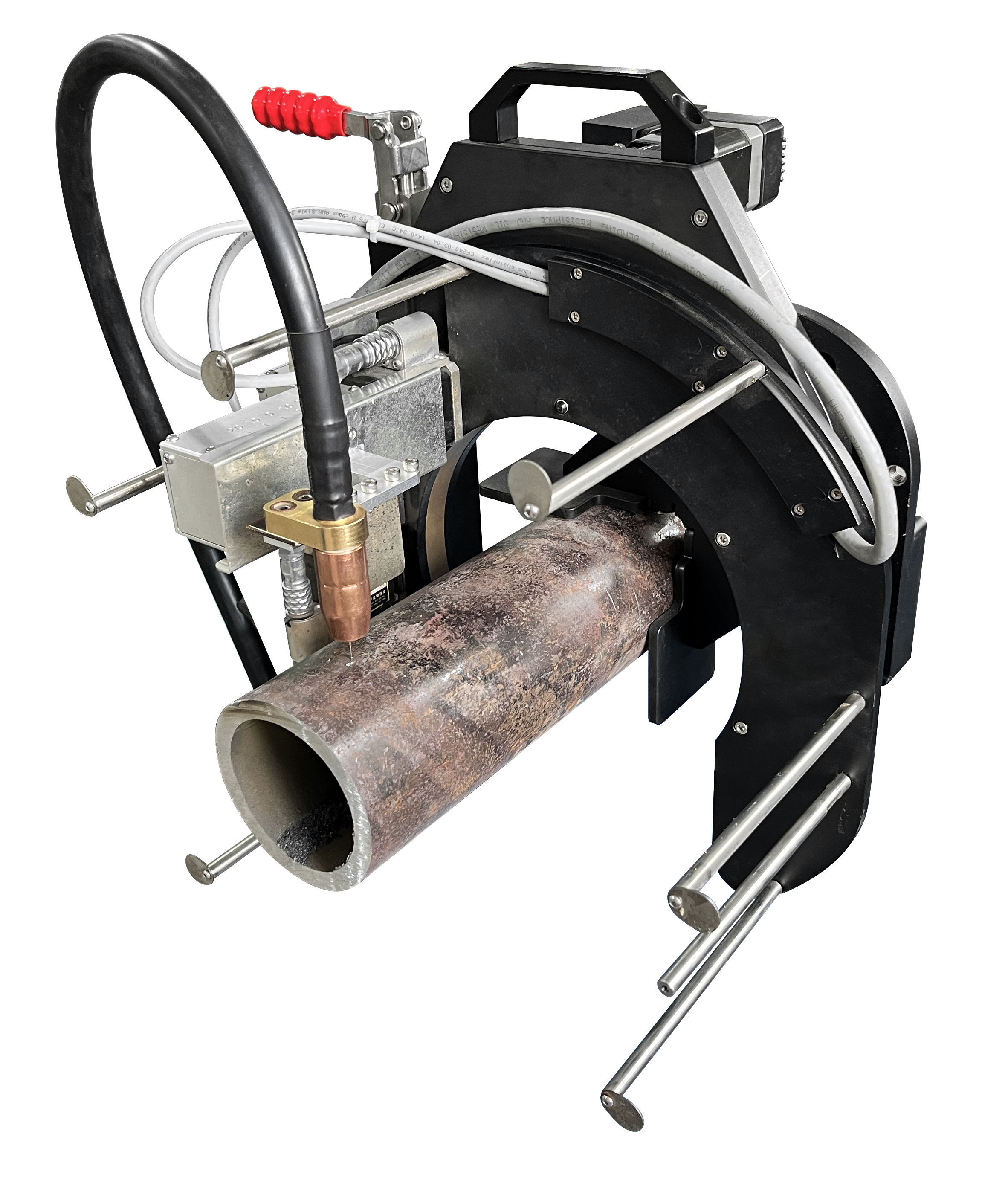

Machine head part
ModelK130K168
Applicable pipe diameter (mm)30-11460-168
Weight (kg/lb)11 /24.316 /35.3
Dimension (mm)400*340*410400*420*490
Rotating speed (r/min)0.1-3
Oscillating frequency (mm/min)0-2000
Travel of vertical axis of the welding torch (mm)50
Travel of horizontal axis of the welding torch (mm)50
Travel of vertical axis of welding torch (manual) (mm)65
