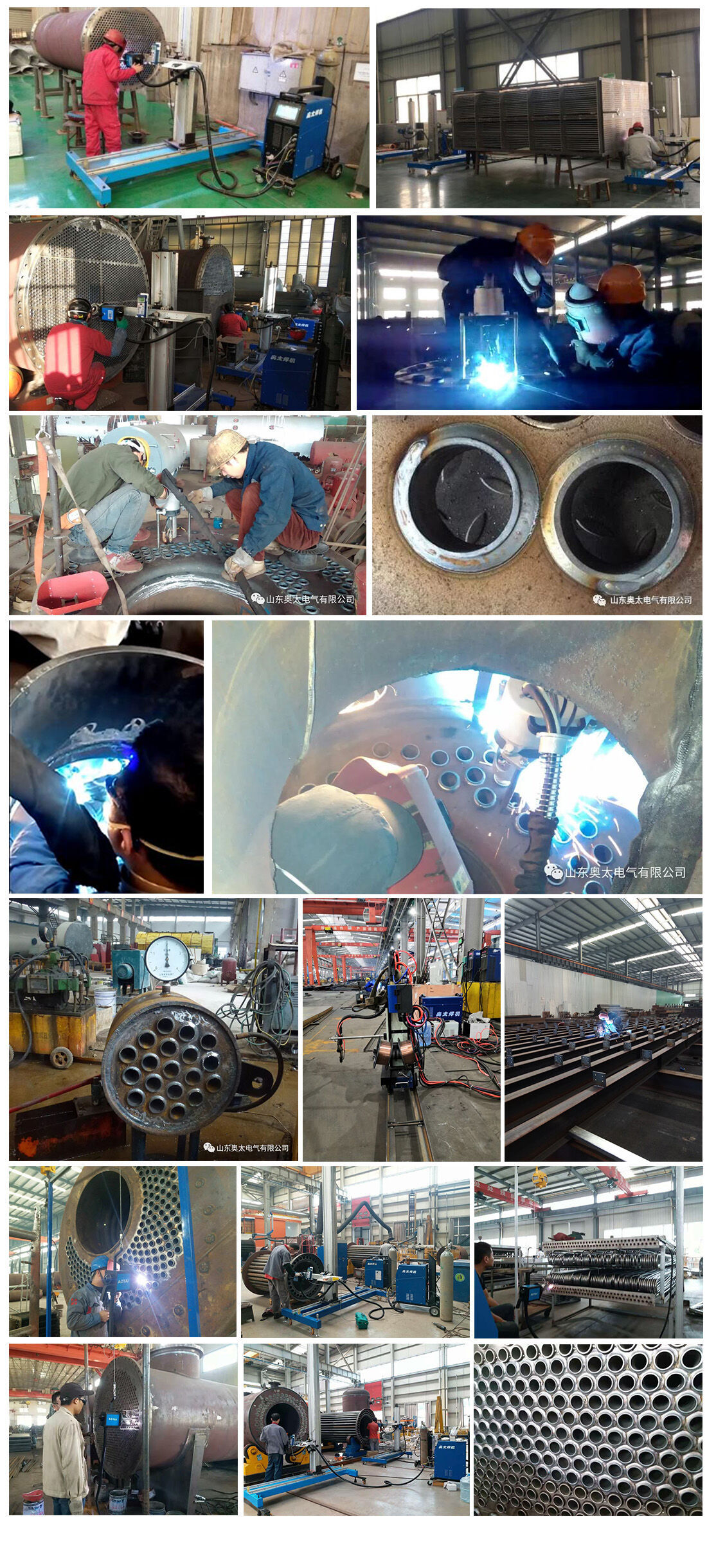

Orbital Welding System:Developed for all position tube - tube sheet automatic welding,Compared with manual welding, more efficient, more reliable, more convenient, and more beautiful.

Share：

Inquiry
Features
Specification
Application
Accessories
Download


Features and Benefits (WZM200 Power Source):

  • Small and light welding head: easy operation with no need of manual interference

  • 7-inch touch screen: friendly and visualized programming interface with simple and easy operating method

  • Long-life motor: high-quality DC core-less servo motor enjoys stable performance and long service life

  • Unlimited rotation: not entangled by water hoses, electric wires, and gas hoses

  • Save and recall 60 sets of parameters: up to 60 sets of parameters can be saved and recalled, and one process can be divided into up to 16 sectors

  • Abundant expert database: the welding programs can be generated automatically according to different pipe diameters and wall thickness

  • Built-in printer: automatically print welding parameters for convenient filing


Features and Benefits:

  • No requirements for welder skills: small size, light weight, and simple operation

  • Safe and reliable: flexible automatic centering fixture, and accurate positioning

  • High weld quality: the closed-type welding

  • Free from intertwined trouble: infinite rotation device for water hose, power cable, and gas hose

  • Water cooling and high duty cycle

  • Convenient for fast welding: common function keys on the welding head




ModelWZM-200
PurposeRealizing all-position TIG tube-to-tube welding
Welding current10~200A
Duty cycle (40℃)200A 35% / 153A 60% / 118A 100%
OCV60V
Rated input voltage/frequency (V/Hz)3 phase, AC220V±15%, 50/60Hz
Cooling method of welding torchLiquid cooling
Display7-inch touch screen
Control functionDC/Pulsed currentRotationWire feeding controlArc length controlShielding gas controlPrint control
Programs storage capacity60
The number of divided sectors1~16
Protection/Insulation classIP21S/F
Weight (without coolant)16.4Kg/36.2lb
Dimension (mm)440*200*410
Operating environmentIndoors temperature: -10℃~+40℃Humidity: ≤ 95%

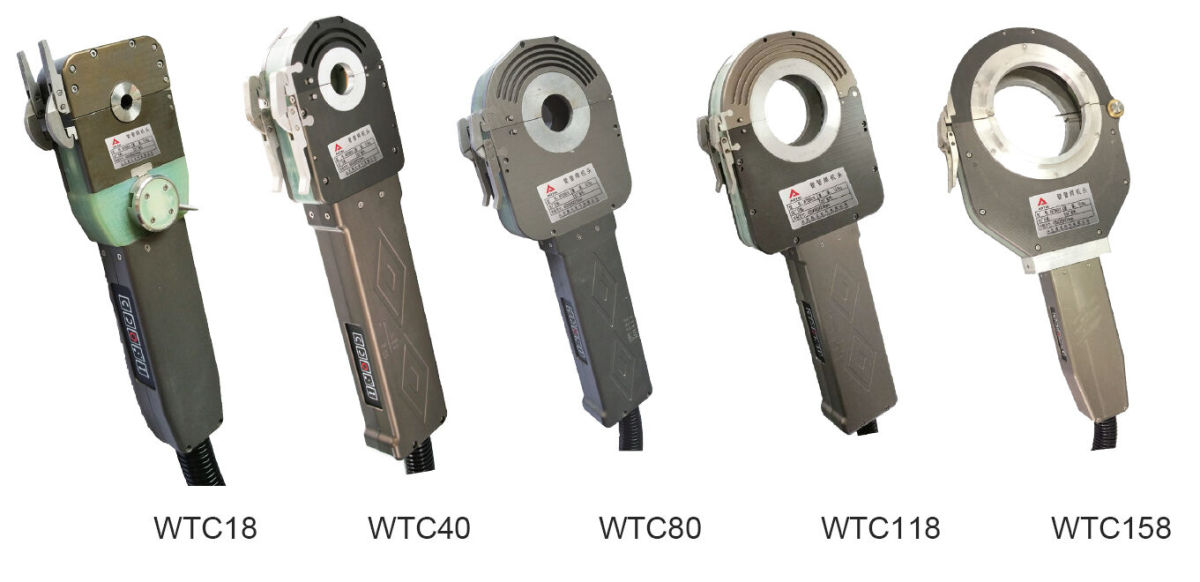

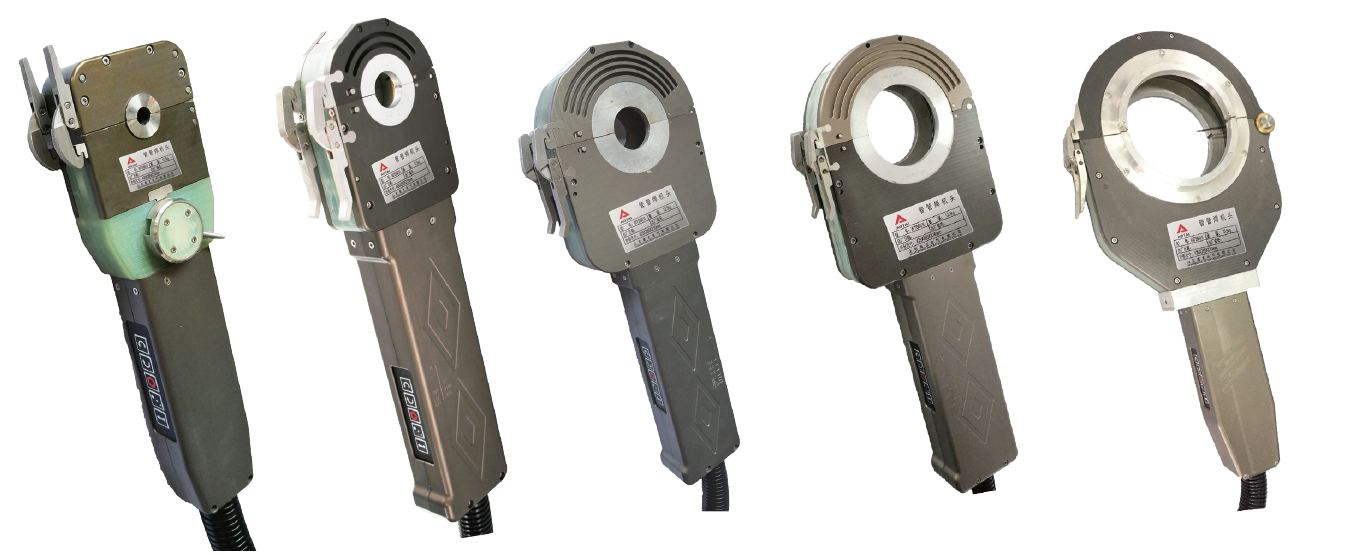

ModelWTC18WTC40WTC80WTC118WTC158
Weldable materialCarbon steel, stainless steel, titanium and titanium alloy etc.
Tube diameter (mm)Φ6~Φ12.7Φ6~Φ38.1Φ19.05~Φ76.2Φ38.1~Φ101.6Φ50.8~Φ152.4
Torch rotation speed (rpm)0.3~6.00.2657~5.31450.194~3.8770.092~1.9240.073~1.472
Duty cycle (%) 60%Duty cycle 40%@85Duty cycle 40%@100Duty cycle 40%@120Duty cycle 40%@120
Duty cycle 60%@65Duty cycle 60%@75Duty cycle 60%@100Duty cycle 60%@90
Duty cycle 100%@45Duty cycle 100%@55Duty cycle 100%@80Duty cycle 100%@75
Protection gasArgon
CoolingWater cooled
Cooling water flow (ml/min)≥450m
Weight (kg /lb)2.0 /0.93.5 /7.75 /11.16.5 /14.410 /22.2
Dimension (mm)292*96*34377*70*42436*156*44.5540*195*54577*255*56

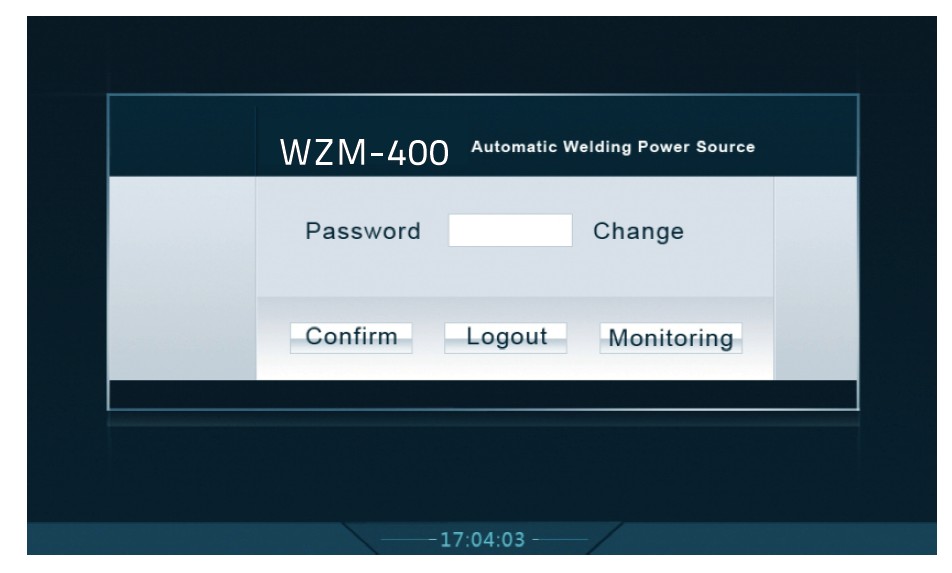

User management login interface

·User needs to enter password, modify welding standard, safe to use

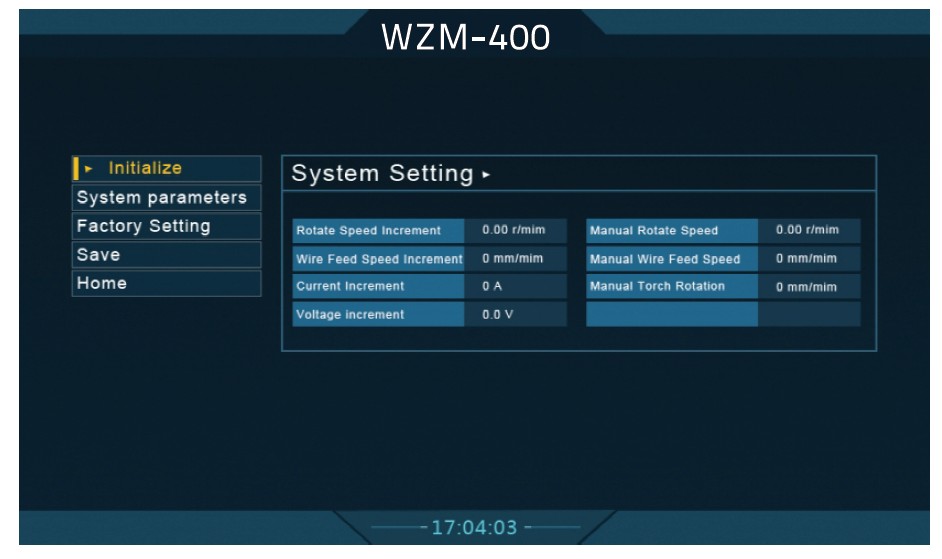

System setting interface

·Rotate speed increase

·Manual rotate speed

·Wirefeeding speed

·Inch wirefeeding speed

·Current increase

·Voltage increase

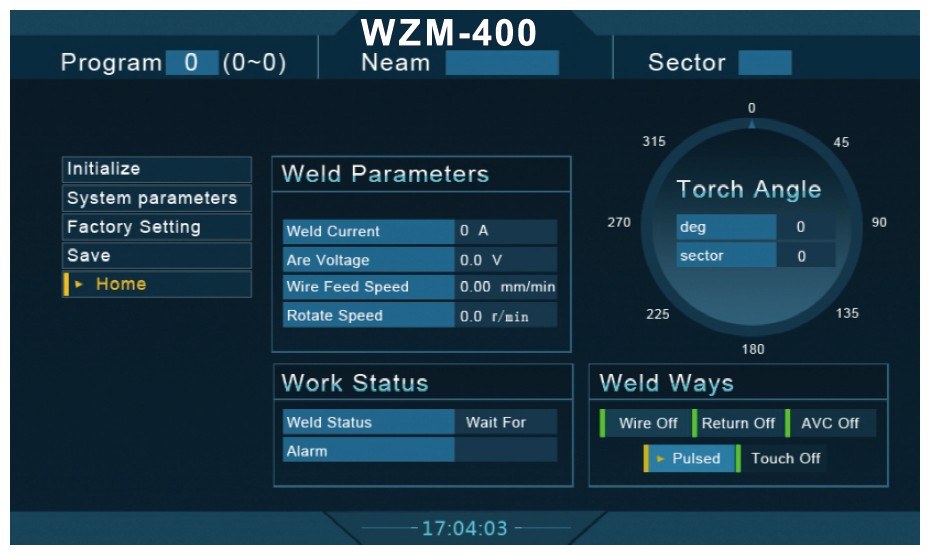

Welding monitoring interface

·Real time monitor whole welding process

·Real time check relative welding parameter, running status, current position, welding manner,

Etc

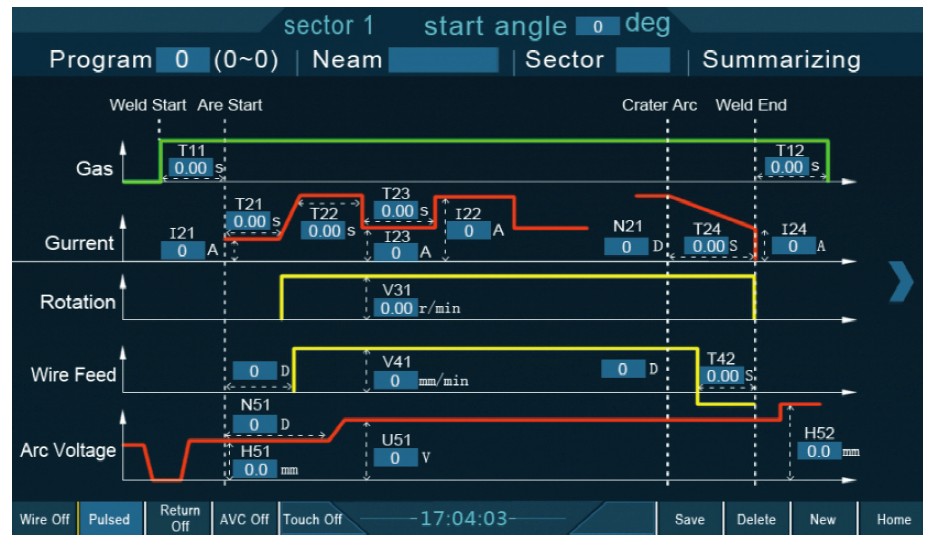

Adjustable welding parameters interface

·Pre-gas time

·Post gas time

·Peak current

·Base current

·Peak current time

·Wirefeeding speed

·Arc length
