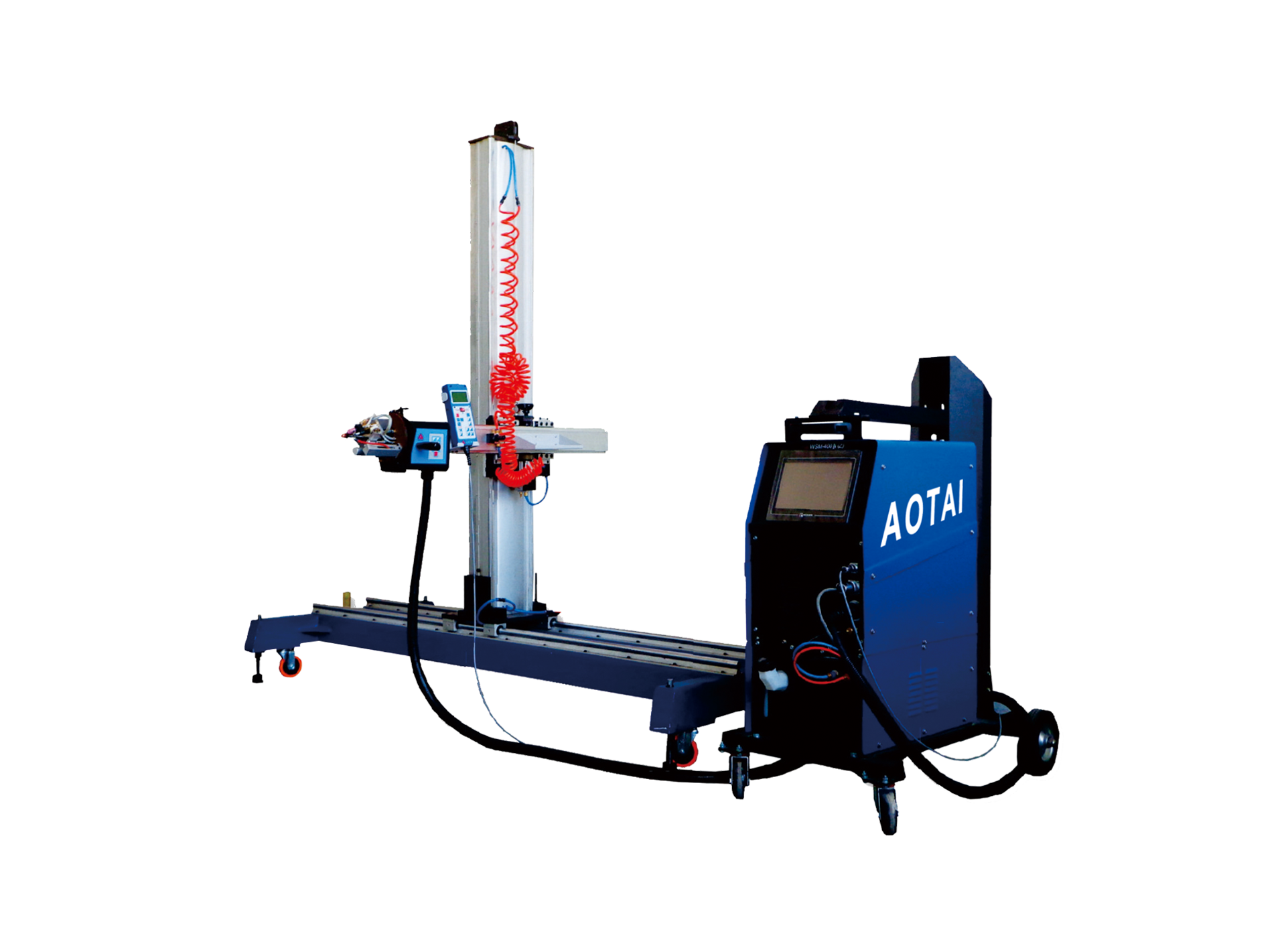

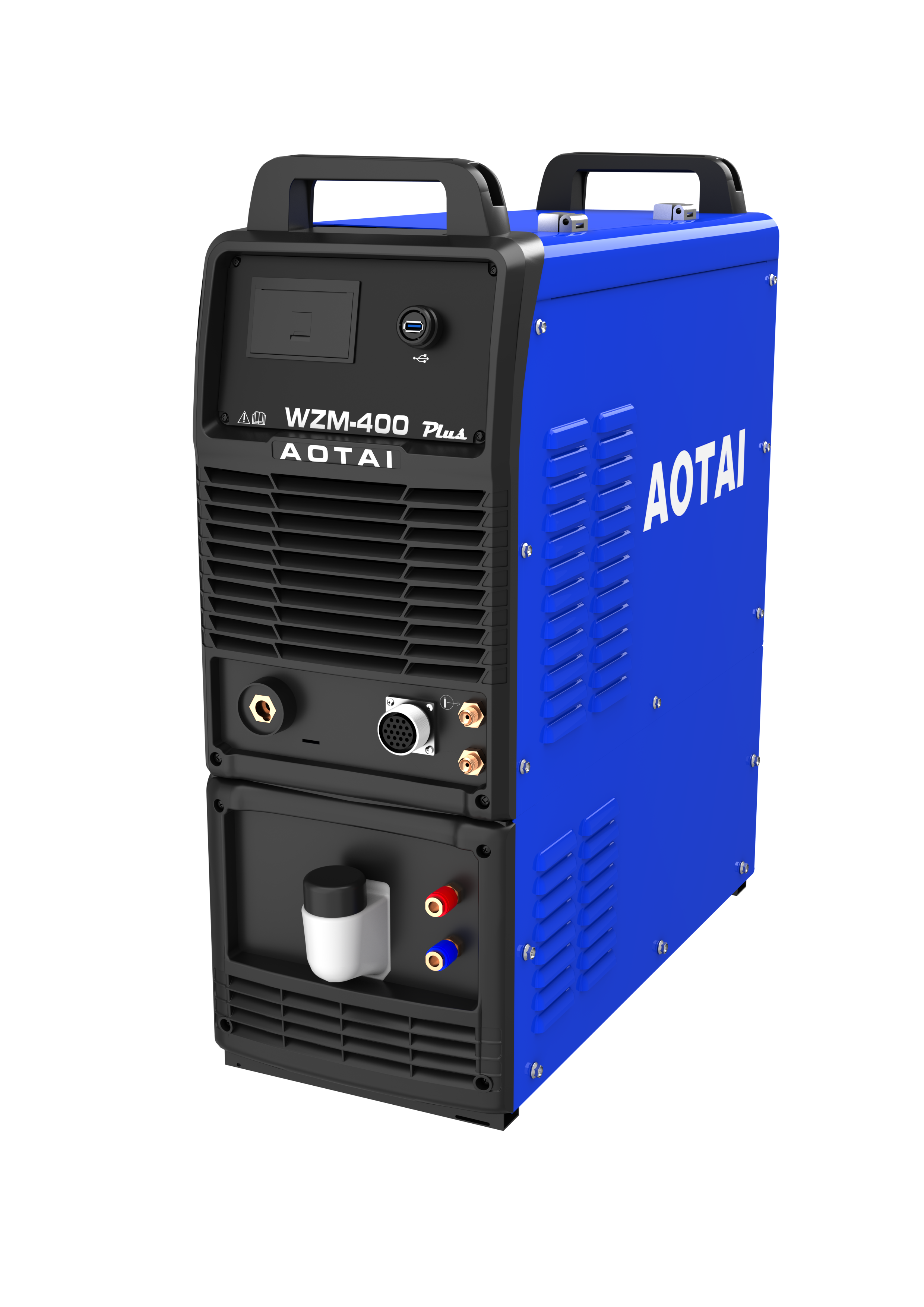

WZM400+WTS60II

Orbital Welding System:Developed for all position tube - tube sheet automatic welding,Compared with manual welding, more efficient, more reliable, more convenient, and more beautiful.

Share：

Inquiry
Features
Specification
Application
Accessories
Download


Features and Benefits (WZM400 Power Source)

  • Fine control of welding process: programmable automatic digital system

  • Perfect control of the welding process: real-time fine adjustment of welding parameters through the remote control box

  • Easy to move: highly integrated design and compact structure

  • Multiple controls: CC or pulsed current output, rotation control, wire feeding control, shielding gas control, arc length control, and horizontal oscillation control

  • Safe and reliable: multiple protections against water shortage and overheating; emergency stop and other protection functions


Features and Benefits (WTS60II)

  • Easy to operate: lower requirements for welder's skill

  • Excellent welding performance and appearance

  • Free from intertwined trouble: infinite rotation device for liner, water hose, power cable, and gas hose




WZM400
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)13.5
Welding current5~400A
Duty cycle (20°C)400A 60%/315A 100%
Savable programs60
Sections16
Display10 inch touch screen digital display
Main functionCC or pulse current output/Rotation control/ Wire feeding  control/Protection gas control/ Auto control of arc length/ Horizontal  swing control, etc.
Protection/insulation classIP21S/H
Weight (no coolant)99kg /218.2lb
Dimension (mm)1100*600*1250


WTS60II
Tube sheet connection formTube protrusion or flush tube
Weldable materialCarbon steel, stainless steel, titanium alloy, etc.
Tube diameter (mm /inch)Φ 16-80 /0.6-3.1(For 60-80, it needs to replace related mechanical parts. )
Maximum welding current (A)300
Wire diameter (mm /inch)0.8 1.0 /0.031 0.039
Torch rotation speed (rpm)0.35~6.0
Maximum wire feeding speed (mm /inch /min)1800 /71
CoolingWater cooled
Weight (kg /lb)12.5 /27.5
Duty cycle (%)300@70%
Dimension (mm)425*265*210


Equipment name
ItemItem
Manipulator
X axis stroke (mm /inch)
750/29
Y axis stroke (mm /inch)1900/75
Z axis stroke (mm /inch)1200/47
Minimum welding height (mm /inch)600/24

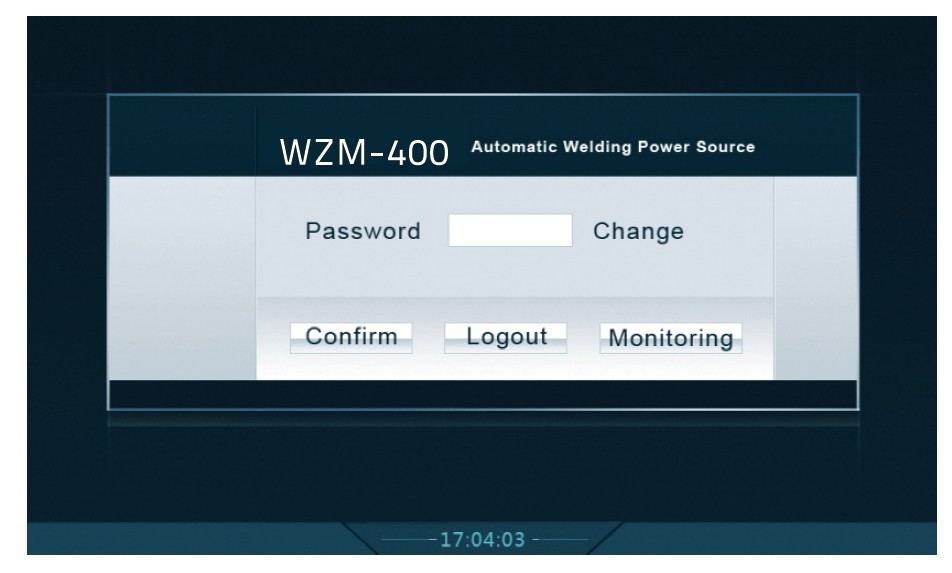

 User management login interface

·User needs to enter password, modify welding standard, safe to use

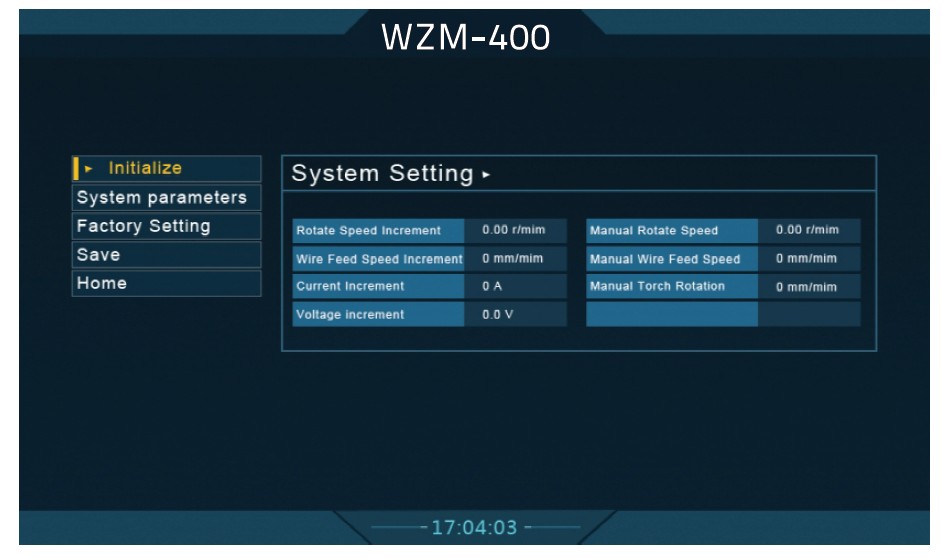

 System setting interface

·Rotate speed increase

·Manual rotate speed

·Wirefeeding speed

·Inch wirefeeding speed

·Current increase

·Voltage increase



 Welding monitoring interface

·Real time monitor whole welding process

·Real time check relative welding parameter, running status, current position, welding manner, Etc

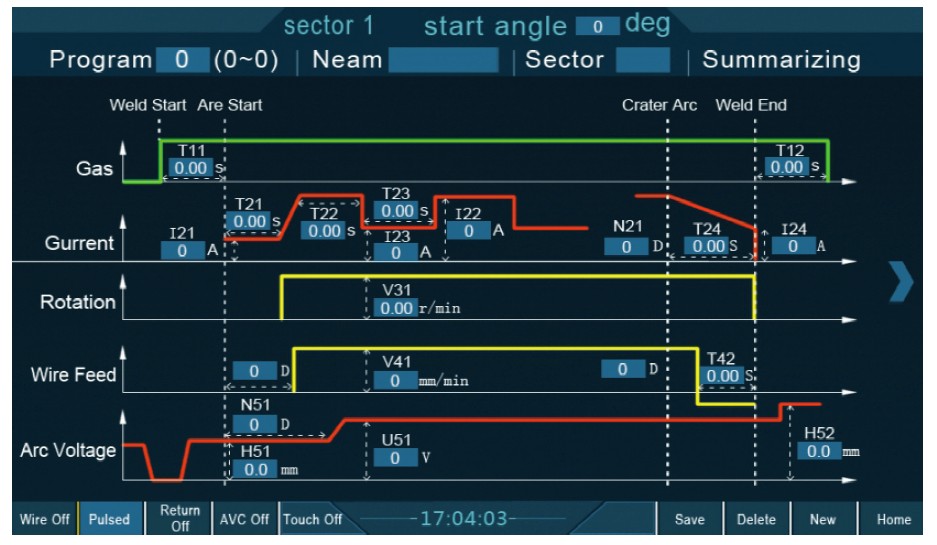

 Adjustable welding parameters interface

·Pre-gas time

·Post gas time

·Peak current

·Base current

·Peak current time

·Wirefeeding speed

·Arc length

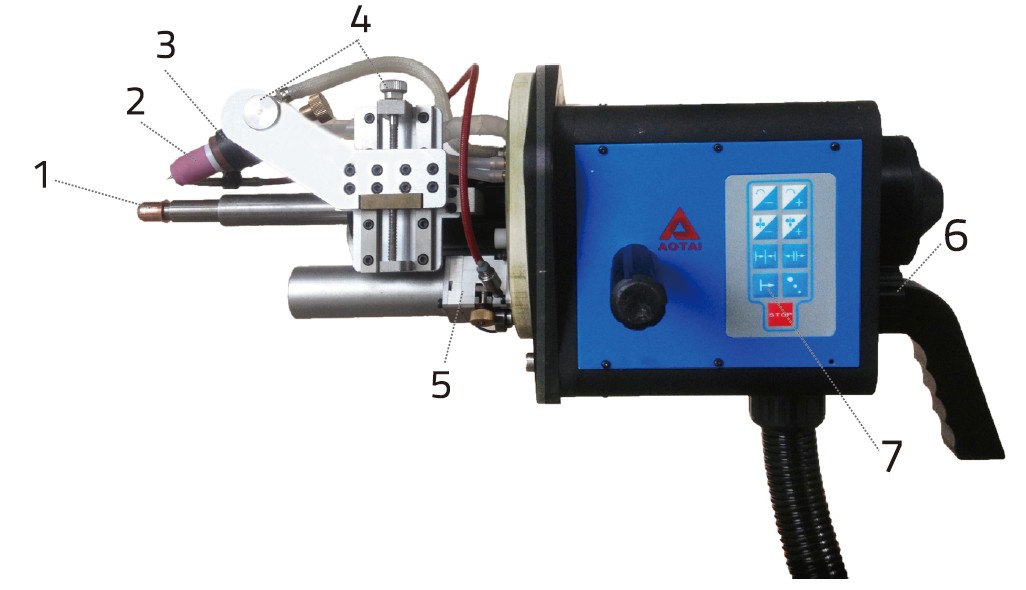

  1. Center positioning copper head available for all tube diameters  (end-user provided, when more than 60mm, the related machinery parts shall be customized)

2. Standard TIG torch, maintenance friendly

3. Longtime continuous working with circulating water cooling

4. Manual adjustment knob, easy adjustment without any tools, save time and energy

5. Integrated wire feeder using 1.0kg wire reel  (included)

6. Arc length automatic tracking and manual adjustment

7. One press to start and automatically welds till complete. Efficient and reliable
