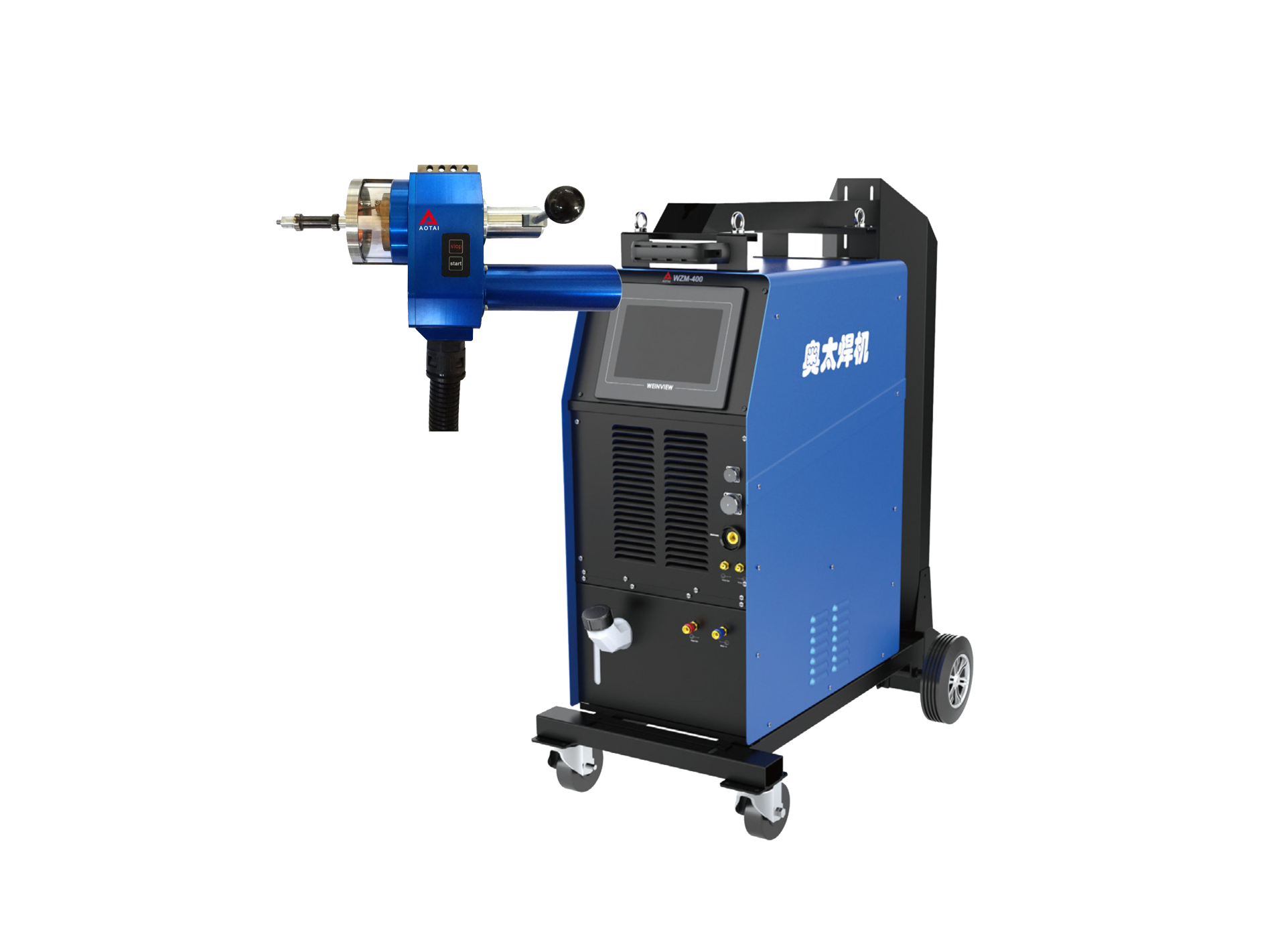

Orbital Welding System:Developed for all position tube - tube sheet automatic welding,Compared with manual welding, more efficient, more reliable, more convenient, and more beautiful.

Share：

Inquiry
Features
Specification
Application
Accessories
Download


Features and Benefits (WZM400 Power Source):

  • Fine control of welding process: programmable automatic digital system

  • Perfect control of the welding process: real-time fine adjustment of welding parameters through the remote control box

  • Easy to move: highly integrated design and compact structure

  • Multiple controls: CC or pulsed current output, rotation control, wire feeding control, shielding gas control, arc length control, and horizontal oscillation control

  • Safe and reliable: multiple protections against water shortage and overheating; emergency stop and other protection functions


Features and Benefits (WTS40):

  • No requirements for welder skills: small size, light weight, and simple operation

  • Safe and reliable: flexible and accurate positioning

  • High weld quality: the closed-type welding

  • Free from intertwined trouble: infinite rotation device for liner, water hose, power cable, and gas hose

  • Water cooling and high duty cycle



WZM400
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)13.5
Welding current5~400A
Duty cycle(20℃)400A 60% /315A 100%
Savable programs60
Sections16
Display10 inch touch screen digital display
Main functionCC or pulse current output /Rotation control / Wire feeding control /Protection gas control / Auto control of arc length / Horizontal swing control, etc.
Protection/insulation classIP21S /H
Weight(no coolant)
99kg /218.2lb
Dimension (mm)1100*600*1250



WTS40
Weldable materialCarbon steel, stainless steel, titanium alloy etc.
Main tube sheet connection formFlush tubes
Tube diameter (mm )Φ16~Φ38
Tungsten electrode diameter2.4
Torch rotation speed (rpm)0.5~1.0
Tungsten electrode angle (mm)7°            Range：Φ16~Φ28
0°           Range：Φ25~Φ38
Protection gasArgon
CoolingWater cooled
Cooling water flow (ml/min)≥600
Weight (kg/lb)3 /6.6
Dimension (mm)317*86*148
Rated welding current100A, rated duty cycle : 70%
Power sourceWZM-400

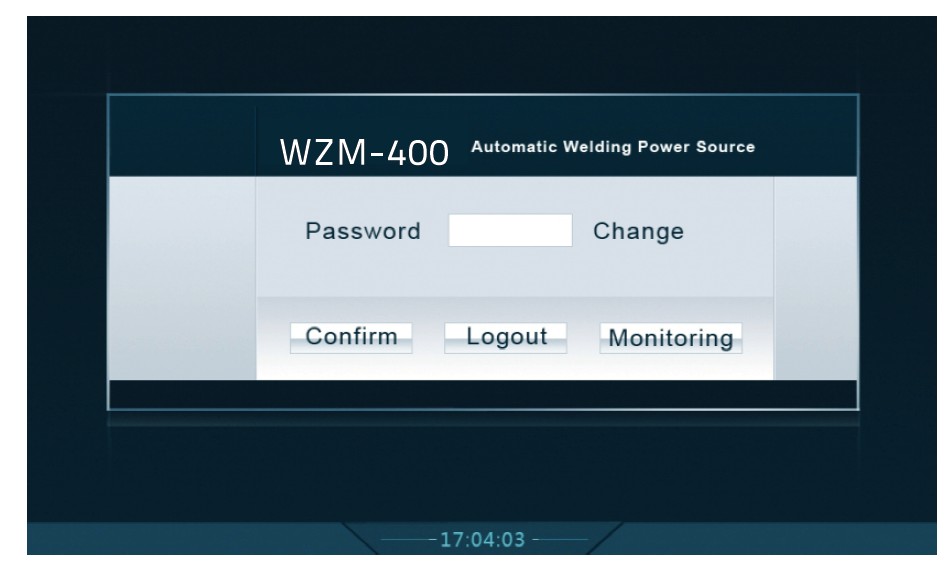

 User management login interface

·User needs to enter password, modify welding standard, safe to use



 System setting interface

·Rotate speed increase

·Manual rotate speed

·Wirefeeding speed

·Inch wirefeeding speed

·Current increase

·Voltage increase

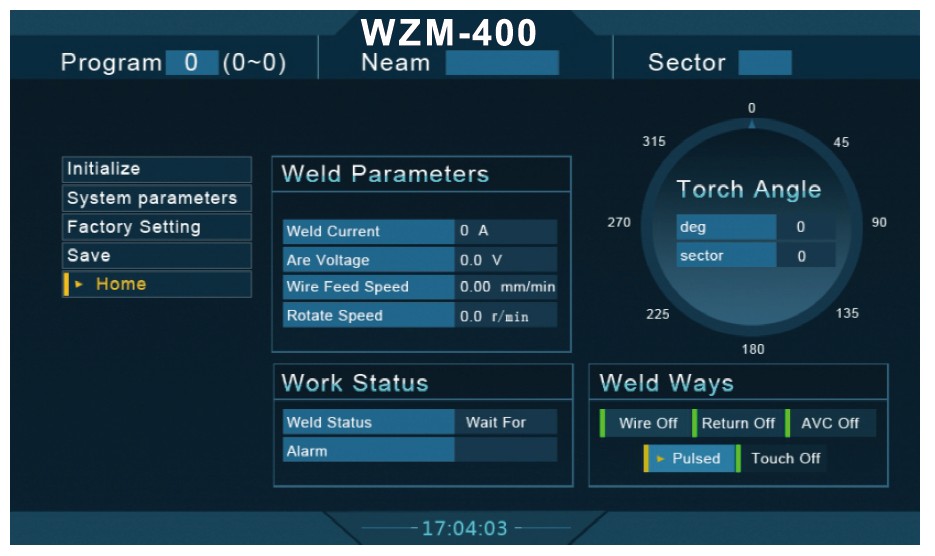

 Welding monitoring interface

·Real time monitor whole welding process

·Real time check relative welding parameter, running status, current position, welding manner, Etc

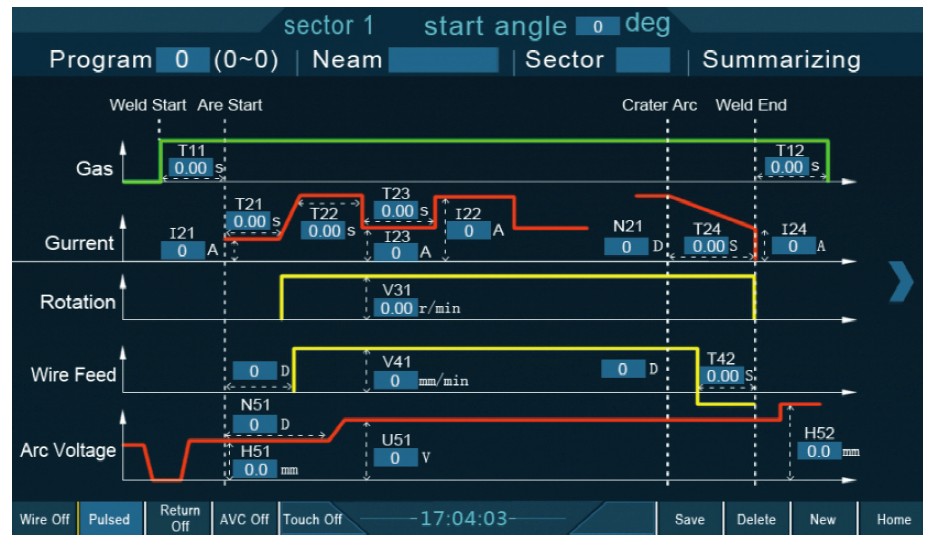

 Adjustable welding parameters interface

·Pre-gas time

·Post gas time

·Peak current

·Base current

·Peak current time

·Wirefeeding speed

·Arc length
