  • Free from manual intervention: fully automated welding

  • Free from teaching and programming: directly import  the CAD drawings and transform them into the coordinates

  • Free from welding distortion: freely marking the welding procedure during tube-to-tubesheet welding

  • Ensured qualification rate of welding seam: the workpiece processing deviation is compensated through visual detection

  • Quick locating: 6-axis robot and the locating time is less than 2 seconds


The connecting method of tube-to-tubesheetWelding of protruding tubes and flush tubes
Weldable materialsCarbon steel, stainless steel, titanium alloy and so on
Weldable tube diameter (mm)Φ10~Φ60
Welding torch rotating speed (rpm)0.35~6.0
Maximum wire feeding speed (mm/min)2500
Arc length responding speed (mm/min)0~250
Radius adjusting speed (mm/min)0~250
Welding torch tilt angle (°)-10°~30°adjustable
Maximum welding current (A)300
Arc length adjusting interval (mm)0~20
Radius adjusting range (mm)0~50
Welding wire diameter (mm)0.8 /1.0
Shielding gasArgon
Cooling methodwater cooling
Coolant flow rate (mL/min)≥600
Weight (kg /lb)7 /15.4
Duty cycle (%)70%@300A
Dimension (mm)386*287*220

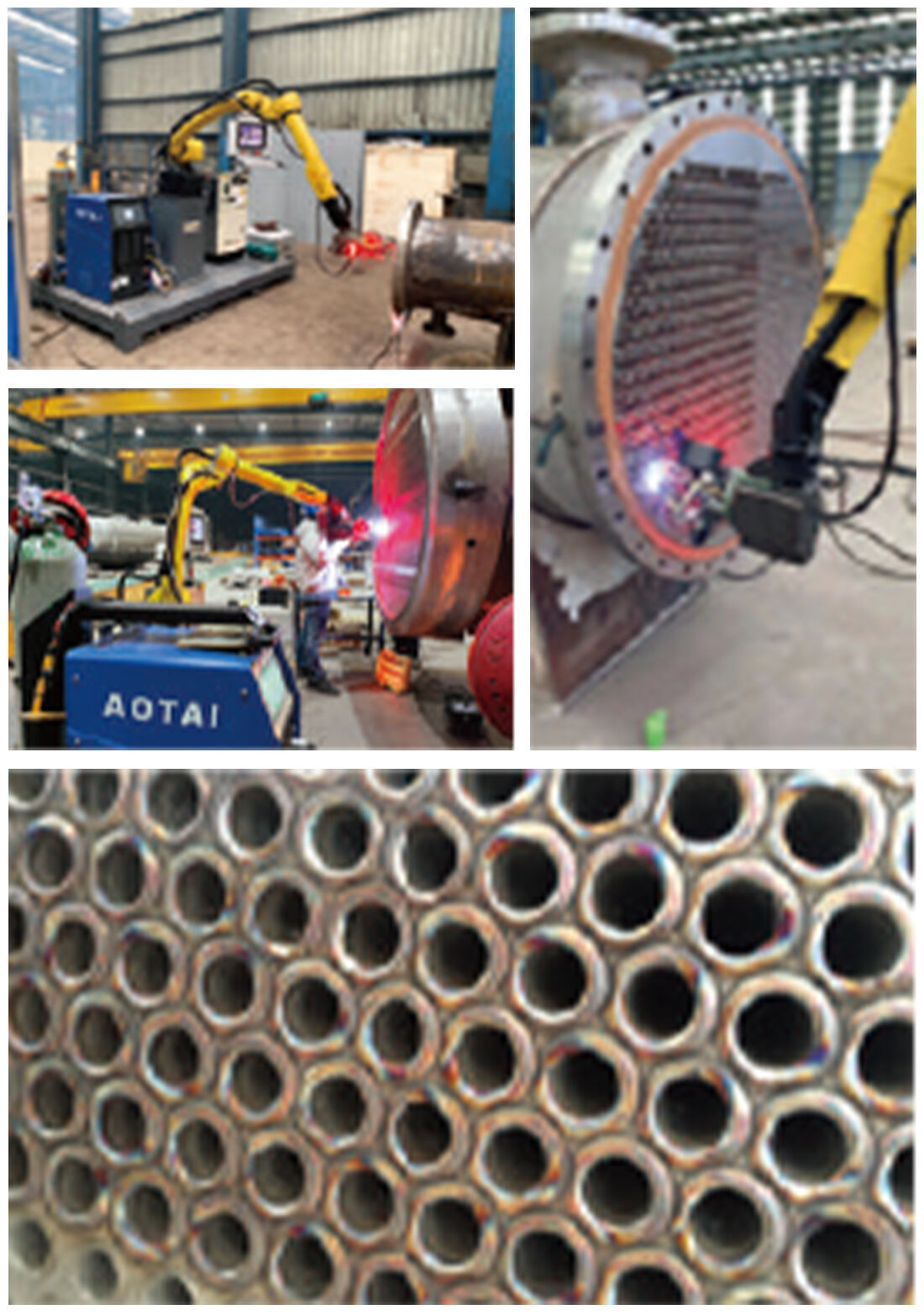

Robotics Tube-To-Tubesheet应用案例.jpg
