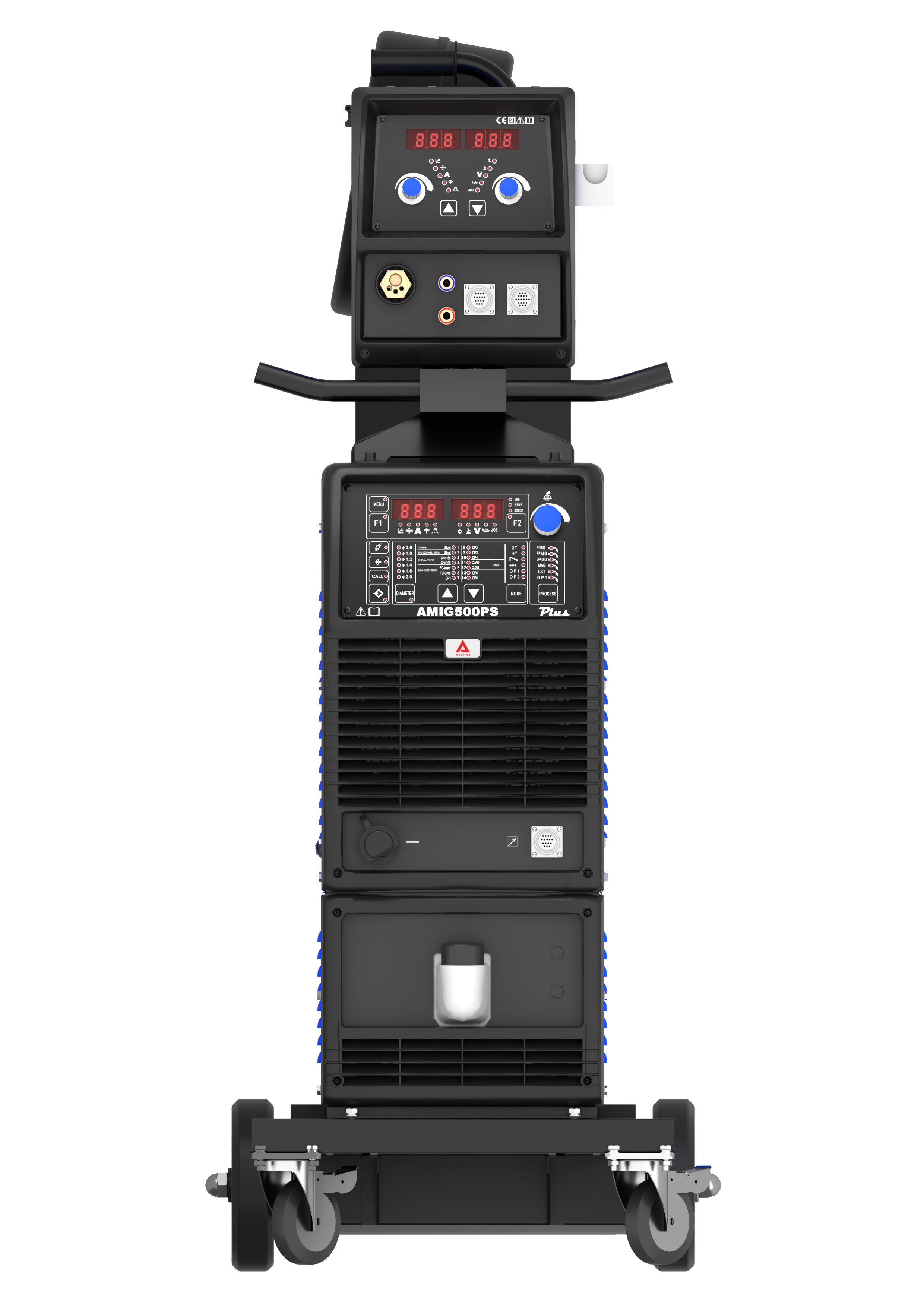

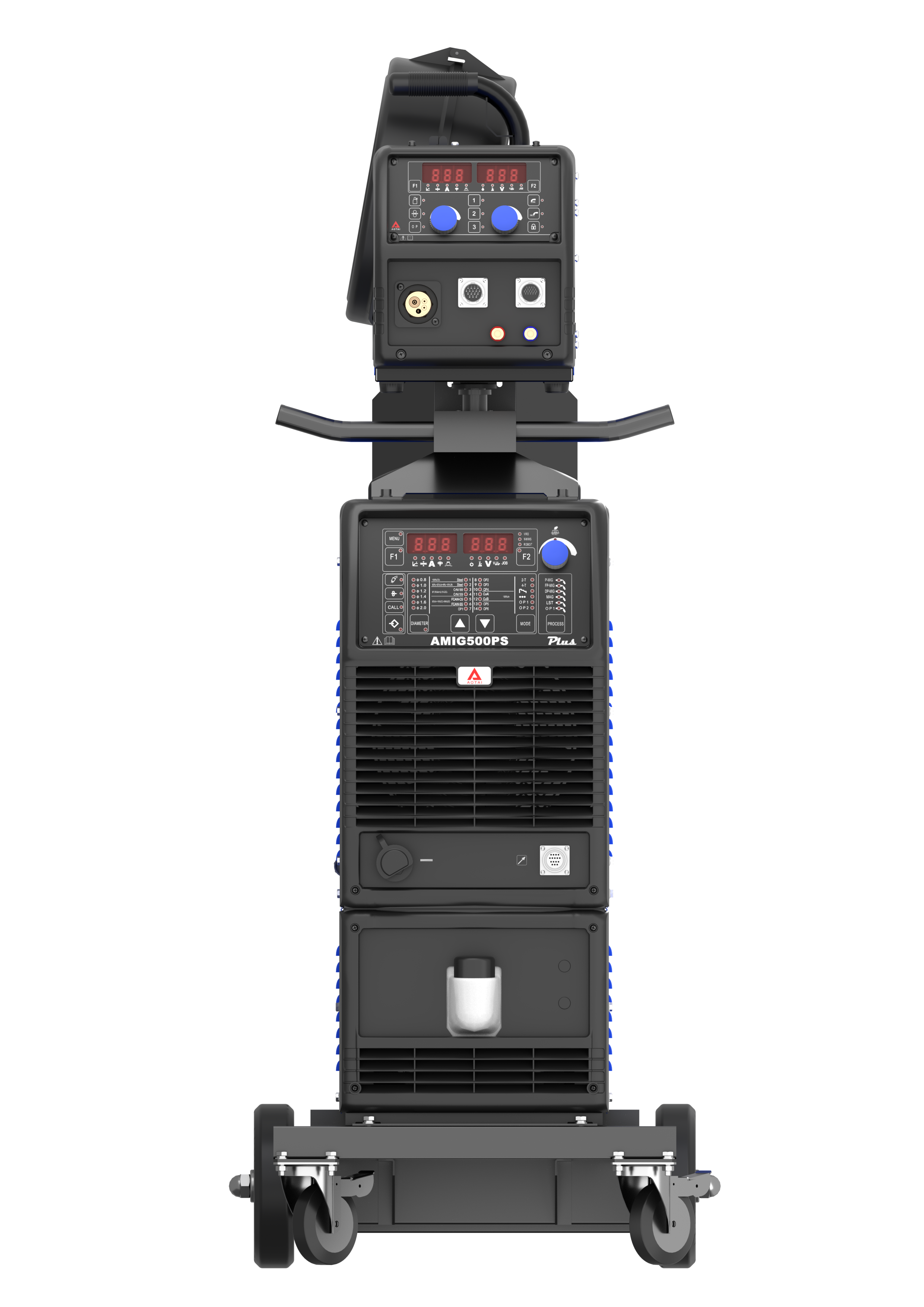

AMIG-400/500PS PLUS

AMIG-PS PLUS series are advanced pulse MIG welding machines that adopt a 60kHz high-speed inverter platform and ARM control core for precise droplet control, and greatly improved penetration, weld formation, and arc stability. It equips a specially designed expert database for carbon steel, stainless steel, and other materials to realize high-effi-ciency, low-spatter, and low-spatter, and low-cost applications.


Output t35.png t33.png t17.jpg t18.jpg t55.png t56.png t12.jpg 微信图片_20220317091517.jpg t10.jpg t62.png


Input t39.png  t41.png       Process t26.jpg


Materials t45.png t46.png                            t16.jpg  t15.jpg










Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • High-frequency inverter: 60kHz frequency; real-time fine droplet energy management, concentrated and stiff arc

  • Stable arc: 45m welding cable to weld carbon steel under pulse mode, stable low-current welding

  • Precise current: extended applicable range for shielding gas, precise consistency between electrode extension and current

  • Easy arc starting: freely switched arc starting mode, high arc starting success rate

  • Platformization design: pulse, double pulse, rapid pulse, deep penetration, CV and other advanced processes modules, even customized process modules are  available

  • Twin-core control: twin 32-bit high-speed high-precision ARM processor, nanosecond-level responding speed

  • Stable wire feeding: new twin closed loops wire feeding control system + large-torque permanent magnet motor

  • One-key operation: save and recall 100 sets of parameters

  • Specific personnel operating: bound through IC card to achieve process controlling and quality tracing

  • ECO design



AMIG400PS PLUSAMIG500PS PLUS
Rated input voltage /frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)1825
Rated input current (A)27.538
Range of welding current (A)30~40030~500
Range of welding voltage (V)15.5~3415.5~39
OCV (V)76
Duty cycle (%)100%@400A100%@500A
Full-load efficiency (%)≥87
Wire diameter (mm)Ф0.8,Ф1.0,Ф1.2,Ф1.4Ф1.0,Ф1.2,Ф1.4,Ф1.6
Gas flow (L/min)
15~20
Dimension (mm)660*320*560
Weight (kg/lb)48 /105.8
55 /121.3
Insulation classH
Protection classIP23




500p plus应用案例.jpg



Standard Equipments:

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Water cooling machine

  • 1 Ground cable L=3m

  • 1 Water-cooled (or Gas-cooled) torch L=3m

  • 1 Wire feeder with Europe connection

  • 1 Trolley

  • 1 wire feeder cable L=2m
