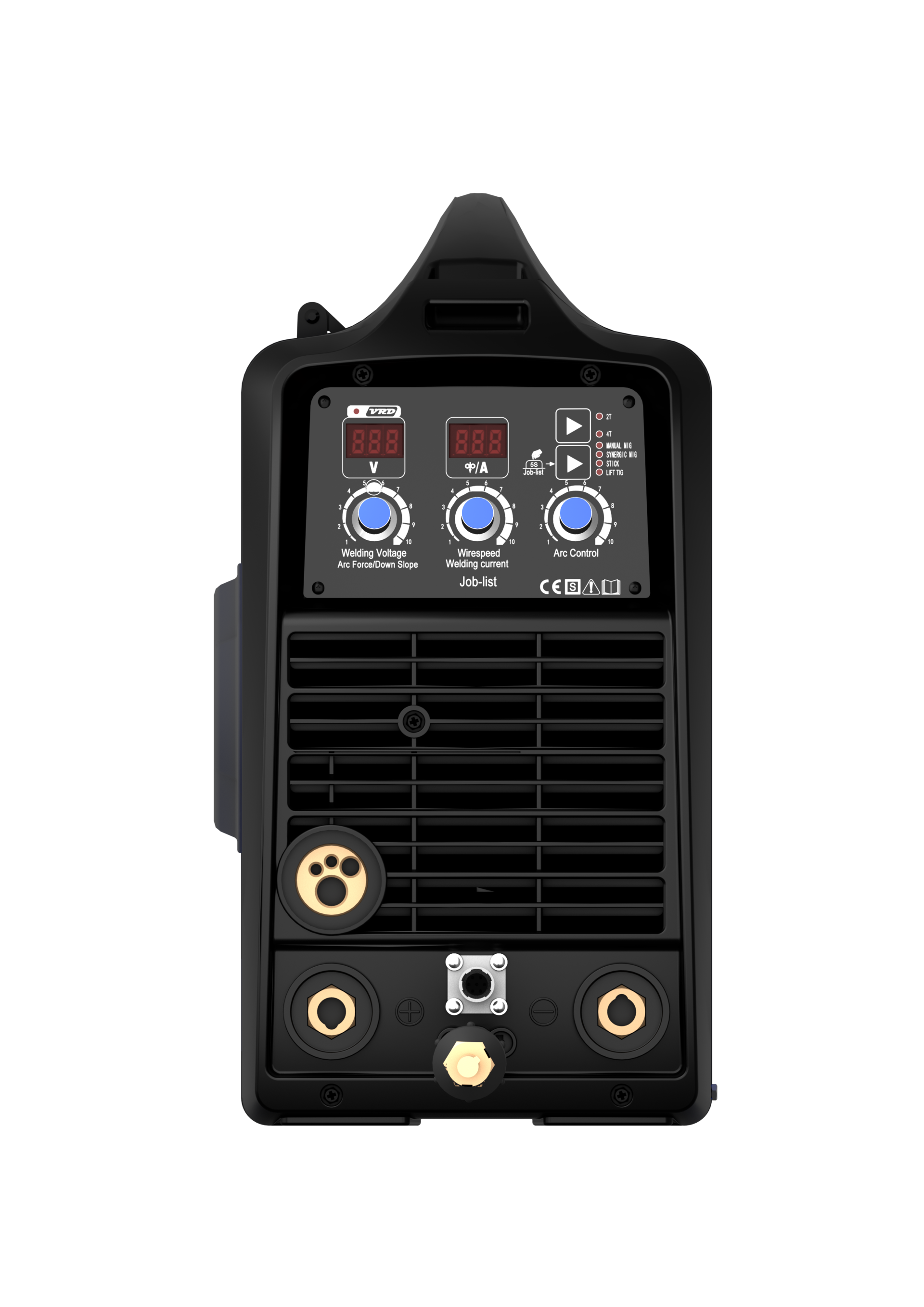

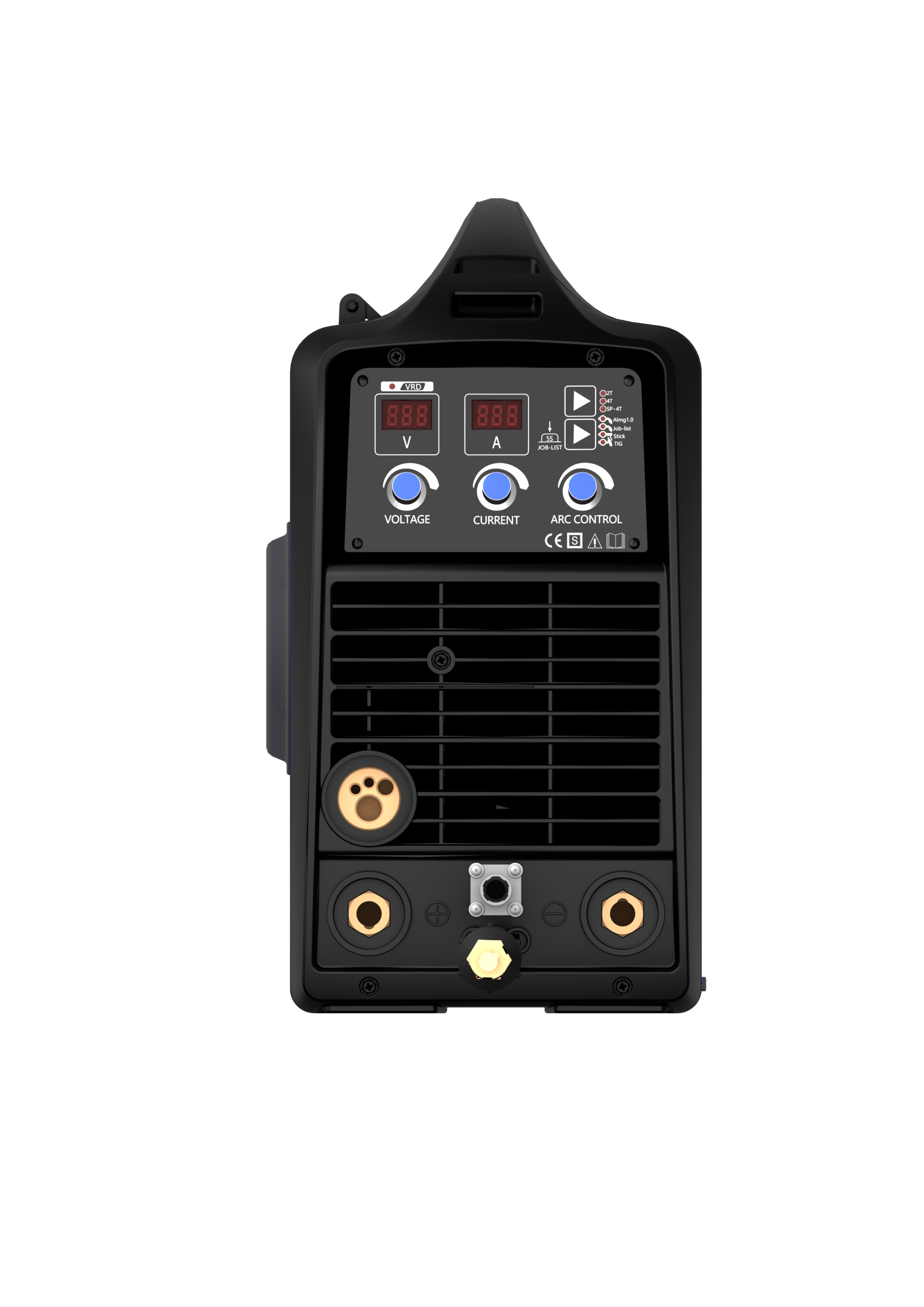

AMIG-210M/210PM

AMIG210M /PM series is a portable welding machine. It is powered by a 230V power supply and specializes in performing multi-process welding on carbon steel, stainless steel, aluminum, and other materials. AMIG210M /PM is a product specially designed for civil /thin sheets applications.

Output Input Process

Materials

Inquiry

Features

Specification

Application

Accessories

Download

Multi-process: MMA, lift TIG, MIG/MAG, FCAW-G/S, (pulse-AMIG210PM)
Portable design: 17kg, robust carrying handle, reserved strap mounting holes
Built-in wire feeding mechanism: 5kg (200mm) and 15kg (270mm) Available welding wire spool
Optional various torches: push welding torch, pull welding torch
Safe and reliable: VRD design, multiple insulations for protection inside the welding machine
Multiple protections: over-current and over-voltage, fault self-diagnosis, error code display

	AMIG210M	AMIG210PM
Rated input voltage/frequency (V/Hz)	1 phase, AC230V±10%, 50 /60Hz
Rated input capacity (KVA)	9.7	11.4
Rated input current (A)	42	52
Duty cycle (40℃)	35%@210A(MIG)
Modes	MMA /TIG /MIG	MMA/TIG/MIG/MIG-P
OCV (V)	63 /13.6 (VRD ON)	60
Output current range (A)	30-210(MIG) /10-200(MMA/TIG)
Output voltage range (V)	10-26
Spool weight (kg)	5/15
Wire Diameter (mm)	0.8, 1.0, 1.2
Trigger mode	2T /4T	2T/4T/Special 4T
Protection class	IP21S
Insulation class	F
Dimension (mm)	540220420
Weight (kg /lb)	17 /37.4

Standard Equipments

1 Power source
1 Connected primary cable L=3m
1 Ground cable L=3m
1 Gas cooled torch
Spool gun (optional)

AMIG210M/210PM.pdf
