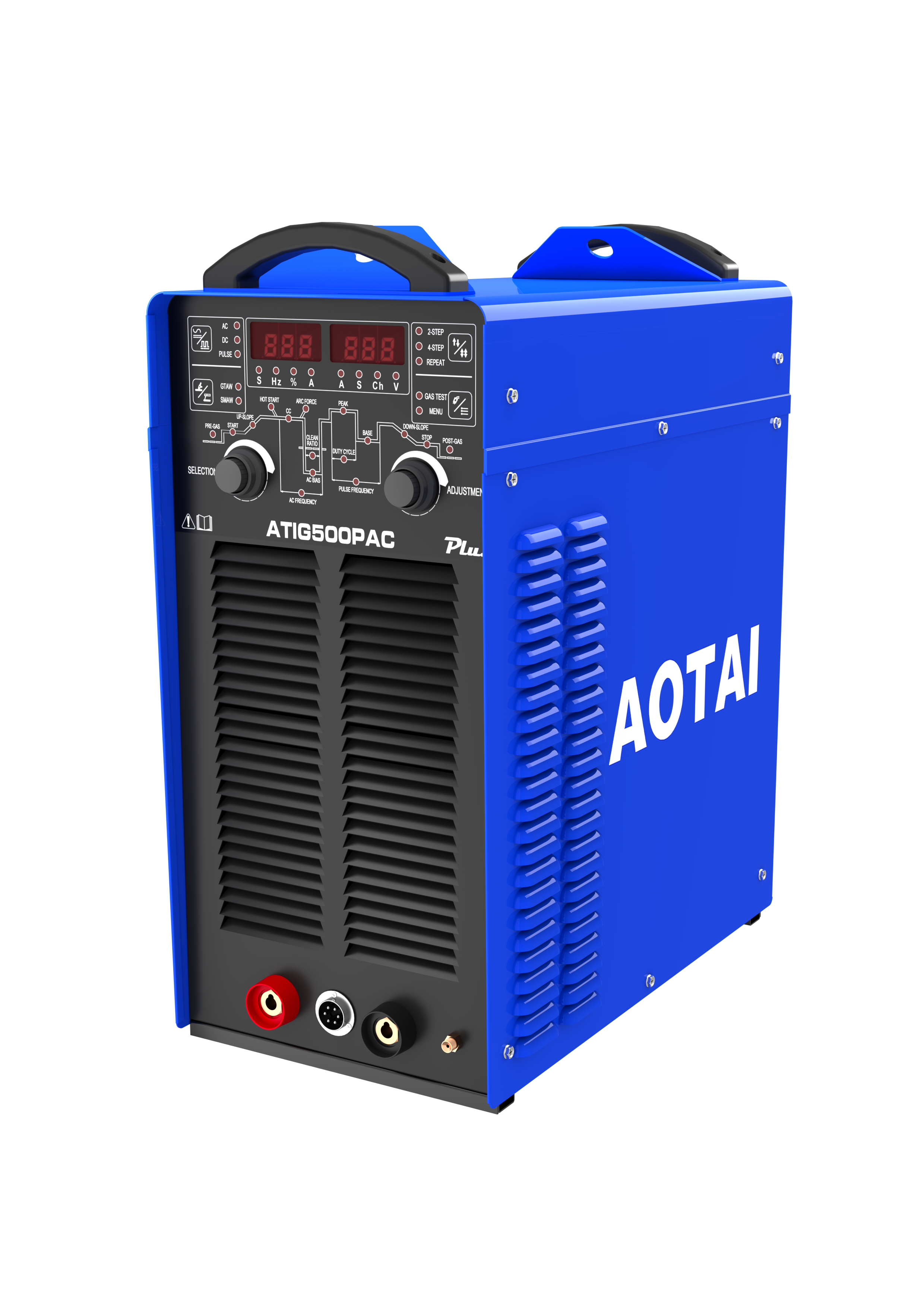

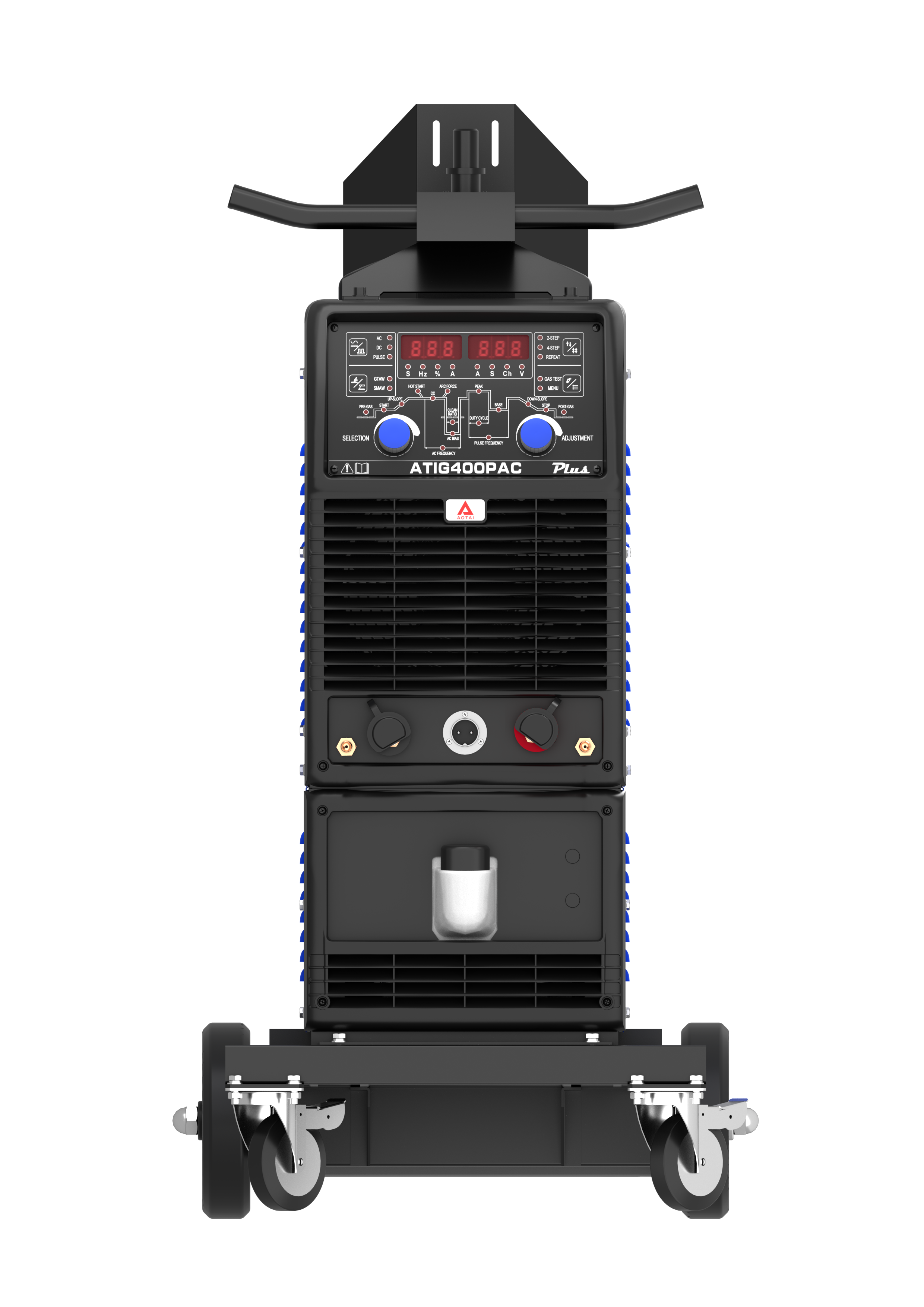

ATIG-315/400/500/630PAC PLUS

ATIG-PAC PLUS welding machine adopts a new-generation 60kHz high-speed inverter platform and high-speed ARMcontrol core, which enjoys precise arc control, stable low-current welding, high arc stiffness, deep penetration, outstanding AC TIG cleaning effect, and can effctively improve the welding speed. Multiple AC waveform outputs ensure a wide adaption range.


Output t34.png t33.png acdc.png t17.jpg t18.jpg 微信图片_20220317091517.jpg t62.png       Input t39.png  t41.png


Process t21.jpg  t19.png


Materials t45.png t46.png t47.png t48.png t51.png t49.png                           t16.jpg  t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download


  • High-speed MCD: 60kHz high-frequency IGBT soft switch inverter technology,  speedy responding, high arc stiffness

  • High performance: ARM32 processor, robust computing capacity and expansion interfaces

  • High reliability: semi-independent wind channel structure, IP23 design, multiple  insulations and protections

  • Wide adaptability: the current through the zero point can be adjusted, applicable for occasions with different requirements for welding penetration or noise

  • 7-in-1 welding body: AC TIG, AC PULSE TIG, DC TIG, DC PULSE TIG, DC  MMA, AC MMA, Cold TIG

  • Multiple operation modes: 2-step, 4-step, repeat, and spot welding functions  for the TIG process

  • High frequency: a maximum pulse frequency of 500Hz, improved welding  penetration

  • Optional multiple control interfaces: analog remote control, digital remote  control, 485 control

  • ECO design: lower open circuit lose

  • Save and recall: capable of saving 100 sets of parameters

  • Timer function: accumulated working hours

  • Wirefeeder(optional)


ModelATIG315PAC PLUSATIG400PAC PLUSATIG500PAC PLUSATIG630PAC PLUS
Rated input voltage /frequency3 phase, 380V±10%, 60Hz
Rated input capacity (KVA)13182635
Rated input current (A)20273953
Rated output current (A)315400500630
Output OCV (V)76767893
Duty cycle (%)60%@315A60%@400A60%@500A60%@630A
Output current range of TIG (A)5~3155~40010~50010~630
Output voltage range of TIG (V)10.2~22.610.2~2610.4~3010.4~34
Output current range of MMA (A)5~3155~400
10~50010~630
Output voltage range of MMA (V)20.2~32.620.2~3620.4~4020.4~44
Cooling method of the welding torchWater cooling /Gas cooling
IP ratingIP23
IP21S
EMC emission classA
Insulation classH
Dimension (mm)630*350*620630*350*620
670*350*780670*350*780
Weight (kg /lb)52/114.652 /114.677 /169.880 /176.4


ATIG500PAC PLUS应用案例.jpg
