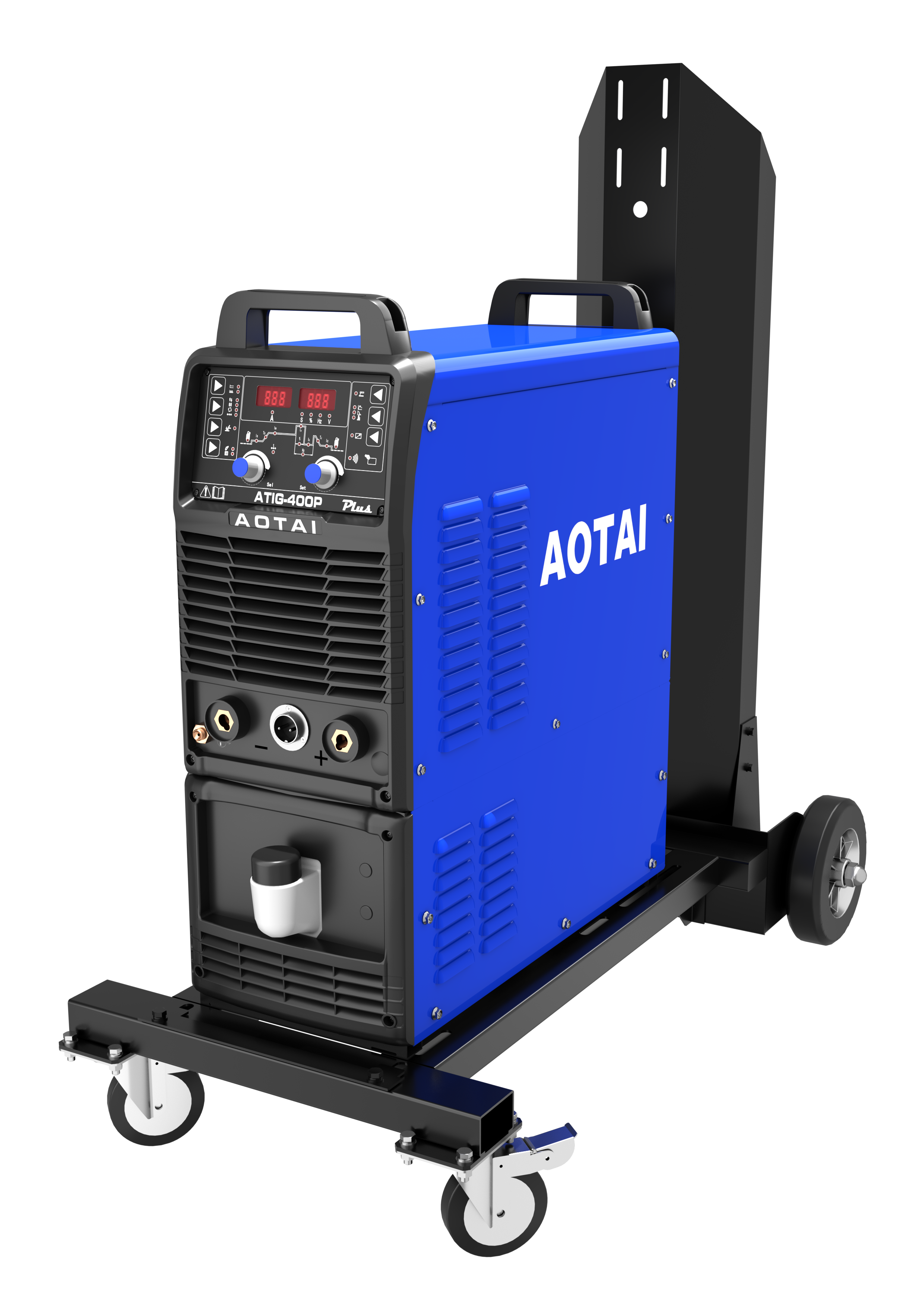

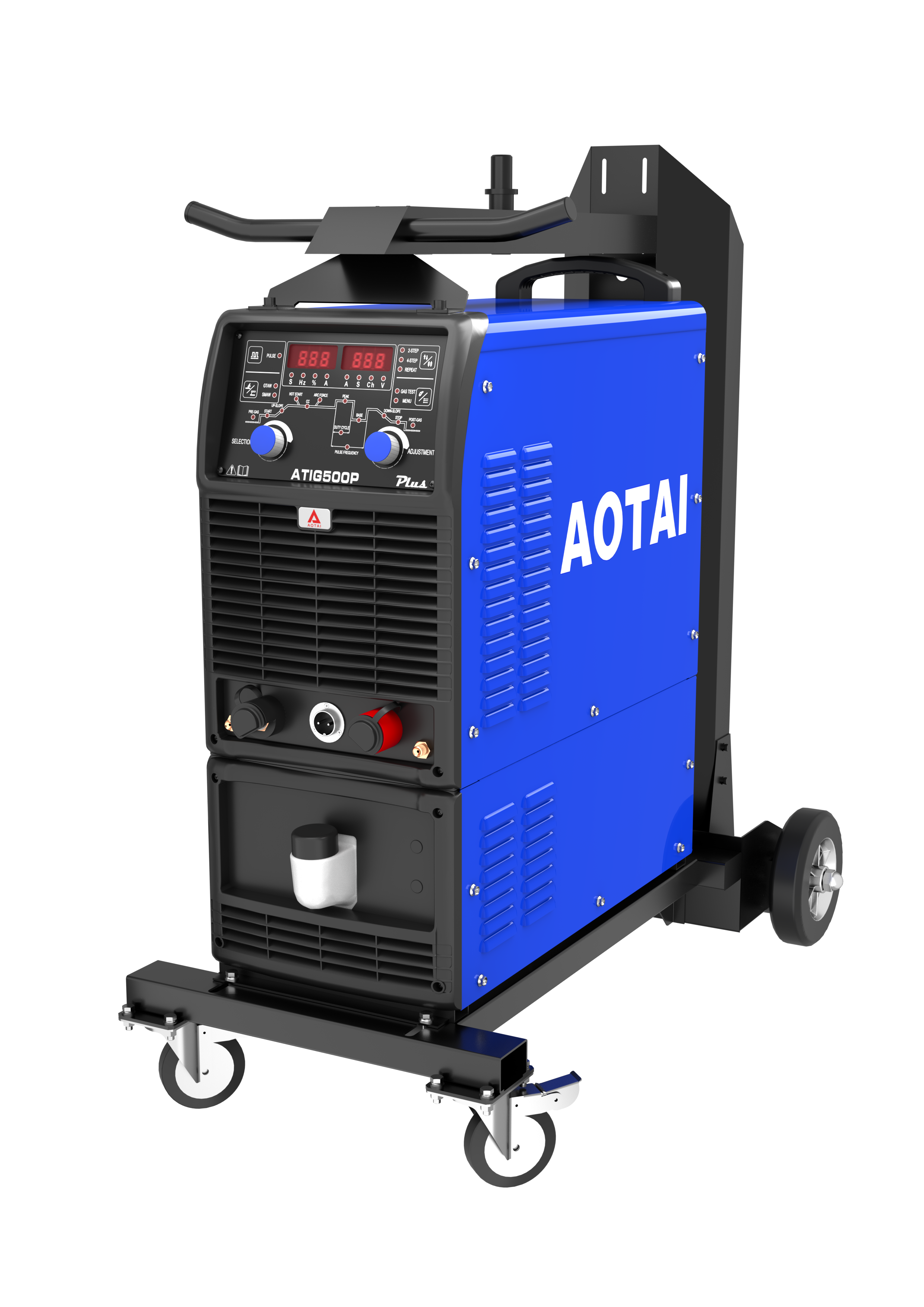

ATIG-400/500P PLUS

ATIG-P PLUS welding machine adopts a new-generation 60kHz high-speed inverter  platform and high-speed ARM control core, which enjoys precise arc control, stable  low current welding, high arc stiffness, deep penetration, and effectively increased  welding speed.


Output t33.png t17.jpg 微信图片_20220317091517.jpg t62.png       Input t39.png  t41.png       Process t21.jpg t19.png


Materials t45.png t46.png t51.png t49.png                                    t11.jpg  t15.jpg


Share:

Inquiry
Features
Specification
Application
Accessories
Download

  • High-speed MCD: 60kHz high-frequency IGBT soft switch inverter technology, speedy responding, high arc stiffness

  • High performance: ARM32 processor, robust computing capacity and expansion interfaces

  • High reliability: semi-independent wind channel structure, IP23 design, multiple insulation and protection

  • Portable type: small size, light weight, convenient to move

  • Long cable: The output cable of TIG welding process can reach 50 meters

  • Multi-process: DC TIG, PULSE TIG, MMA

  • Multiple operation modes: 2-step, 4-step, repeat, and spot welding functions for the TIG welding process

  • Two arc starting methods: HF/Scratch to start the arc, up-to-100% arc starting success rate

  • High frequency: up-to-500Hz pulse frequency, improved welding penetration

  • ECO design: lower open circuit lose



ATIG400P PLUSATIG500P PLUS
Rated input voltage /frequency (V/Hz)
3 phase, AC380V±10%, 50 /60Hz
Rated input capacity of TIG (KVA)
12.825
Rated input capacity of MMA (KVA)
1825
Rated input current (A)2736
Rated output current(A)400500
Output OCV (V)
7379
Duty cycle (40℃) (TIG)60%@400A100%@500A
Duty cycle (40℃) (MMA)35%@400A35%@500A
Output current range of TIG (A)
5-4005-500
Output voltage range of TIG (V)10.2-2610.2-30
Output current range of MMA (A)5-4005-500
Output voltage range of MMA (V)20.2-3620.2-40
Cooling methodGas cooling
IP ratingIP23
EMC classA
Insulation classH
Dimension (mm)630*270*520660*330*610
Weight (Kg/lb)30 /66.1449 /108



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Welding cable L=3m

  • 1 Ground cable L=3m

  • 1 TIG torch
