ATIG200P /TIG200PRO

Output t34.png t33.png 微信图片_20220317091517.jpg t17.jpg t64.png       Input t40.png  t41.png       Process t19.png  t21.jpg


Materials t45.png t46.png t51.png t49.png


Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Multi-process: DC TIG /PULSE TIG /MMA

  • VRD feature

  • MCU control: adjustable parameter such like  Peak current, base current, duty cycle and the  frequency,

  • Multi-parameters adjustment: up-slope time  /down-slope time /pre-gas /post-gas

  • Multi-protection against overheat, over current,  over voltage, etc


  • Multi-process: DC TIG /PULSE TIG /MMA

  • Easy pulse TIG: pulse frequency, pulse width,  peak current, down-slope time

  • VRD function

  • Reliable design: soft start, multi protection: over  current, over voltage, over heat etc.

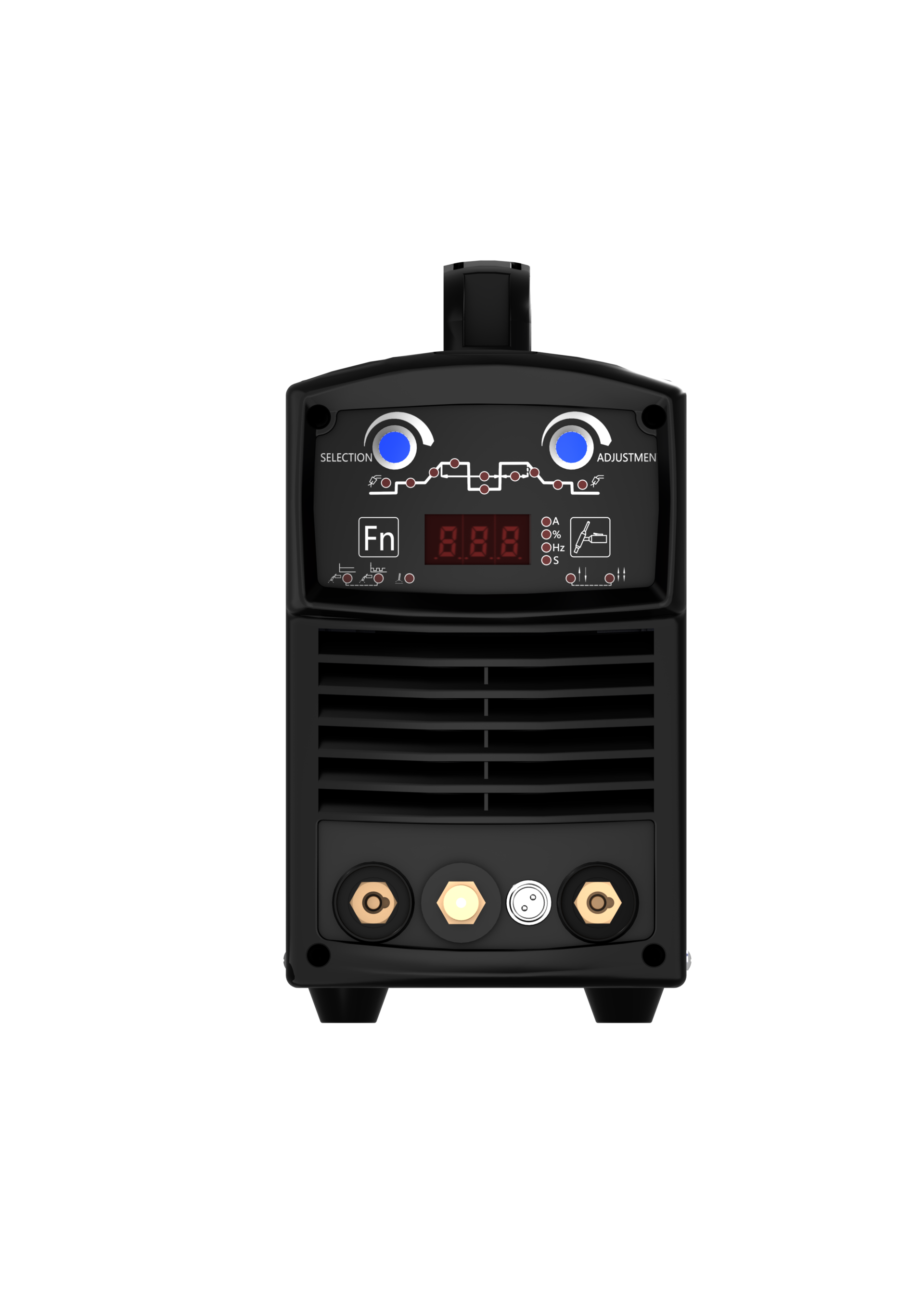

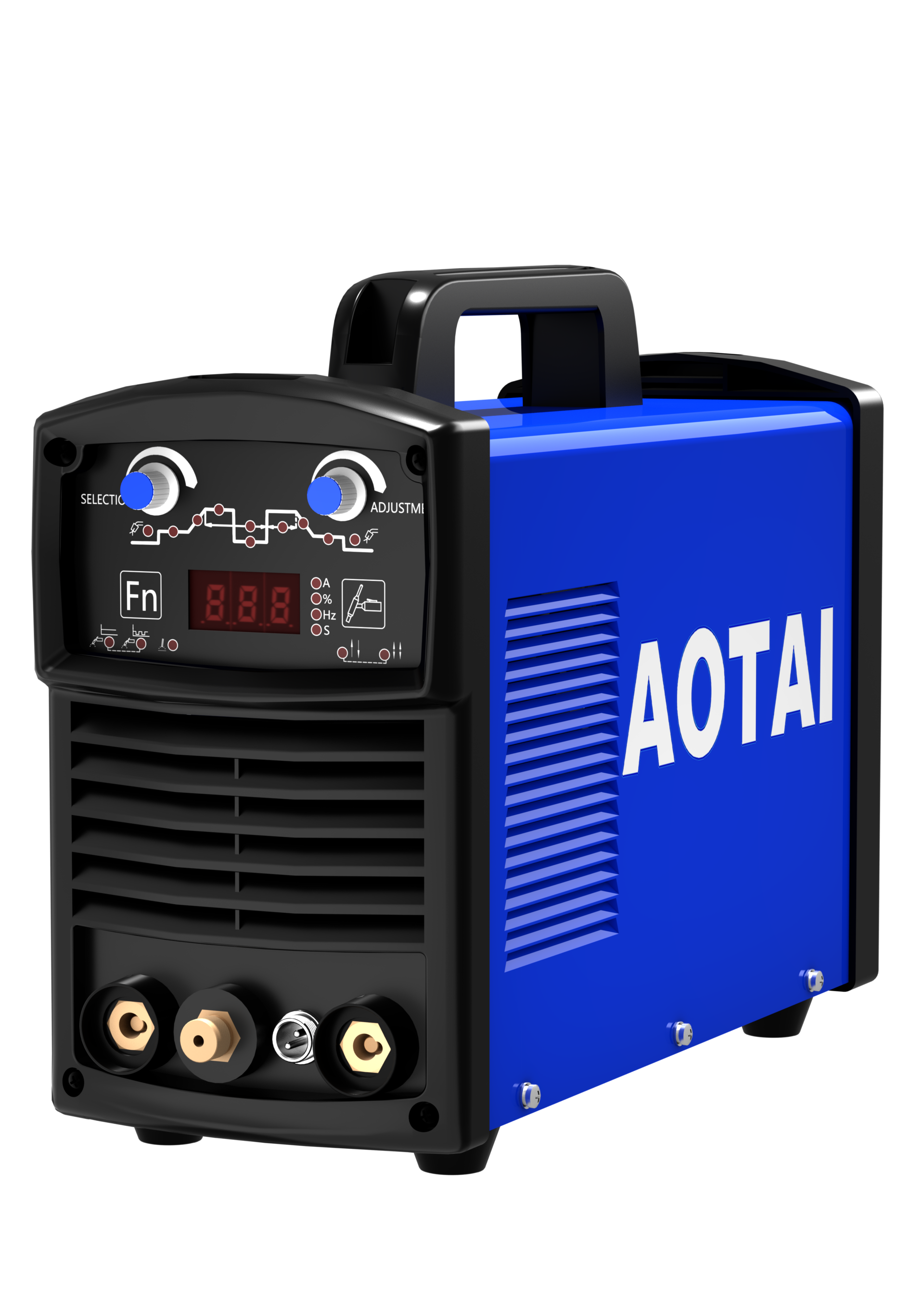

ATIG200P

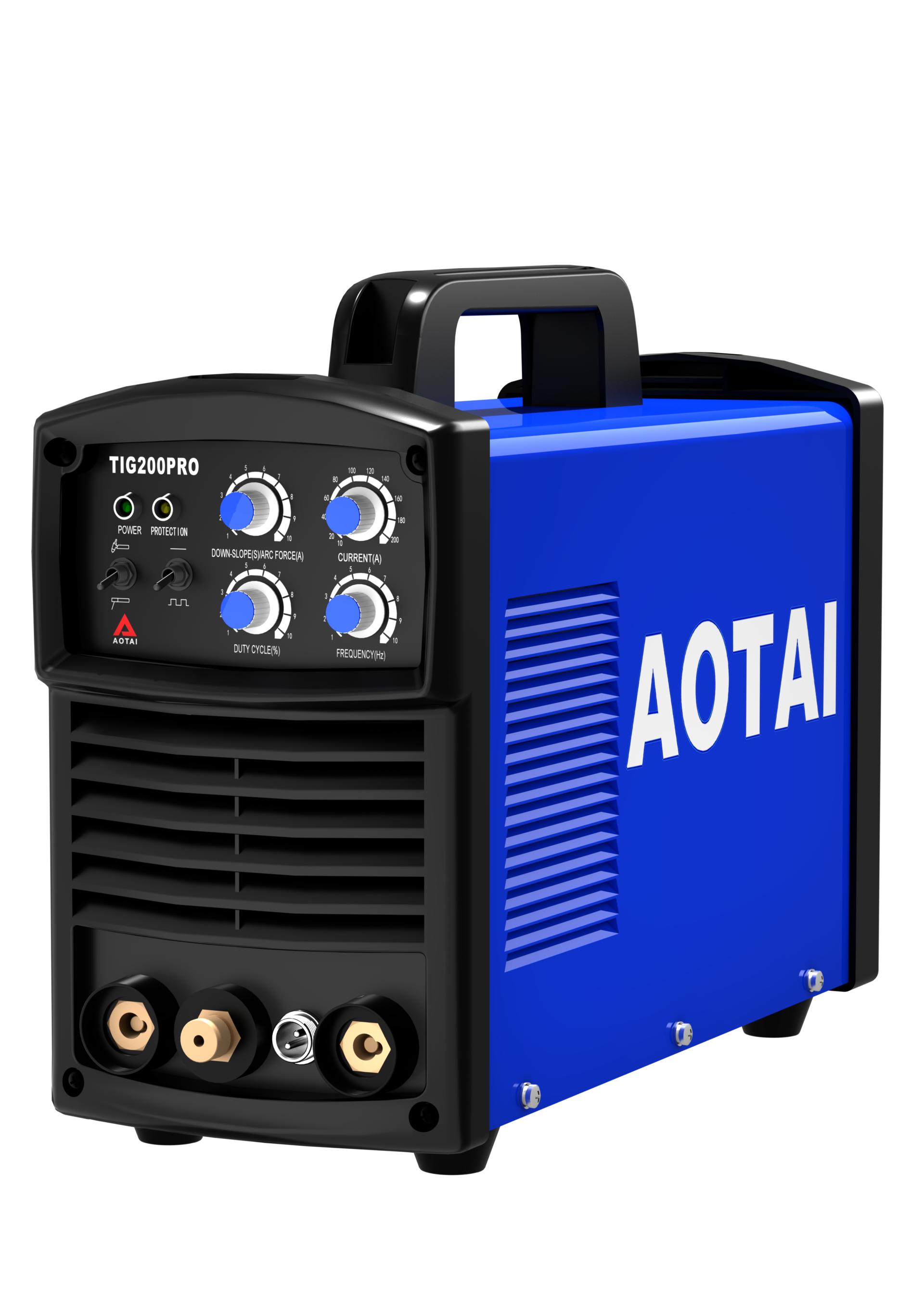

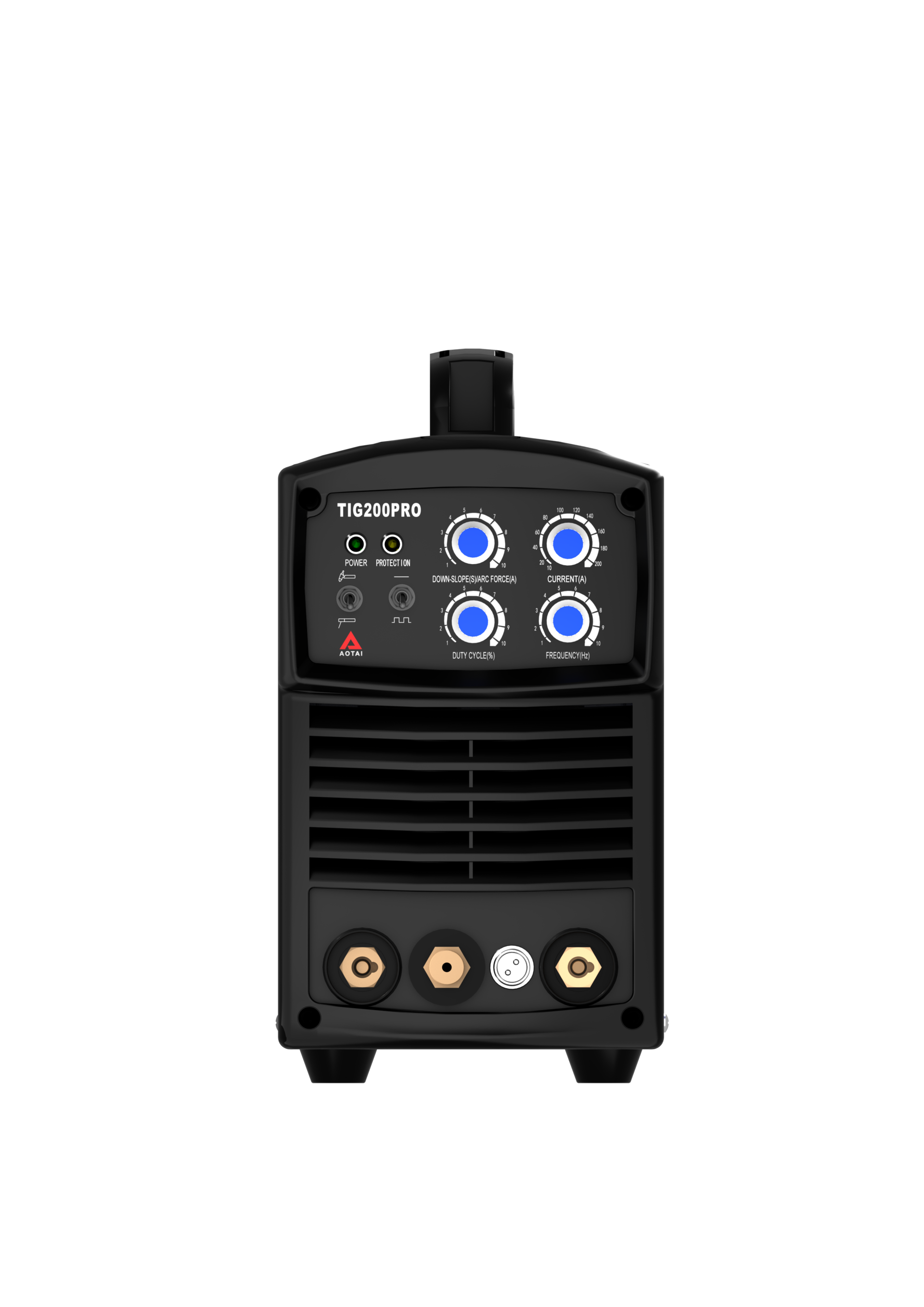

TIG200 PRO
Rated input voltage /frequency (V/Hz)1 phase, AC230V±10%, 50 /60Hz
Rated input capacity (KVA)6.67.5
Rated input current (A)3034
Duty cycle (40℃)40%@200A (TIG)
OCV (V)60 /9 (VRD)54 /9 (VRD)
MMAOutput current range (A)20-160
Arc force (A)50
Hot start (A)50~100
TIGOutput current range (A)10-200
Pre-gas /post-gas (s)0.1-15 /0.1-15
Initial /final current (A)10-200 /10-200
Up-slope /down-slope time (s)0.1-10 /0.1-10
Base current (A)10-200
Pulse frequency (Hz)0.2-201-20
Pulse duty cycle15-85%35-75%
Trigger mode2 /4T
Arc ignition methodHF
Protection classIP21S
Insulation classF
Dimension (mm)389*155*299
Weight (kg /lb)9.5 /21



TIG200 PROpsd.jpg



Standard Equipments

  • 1 Power source

  • 1 Connected primary cable L=3m

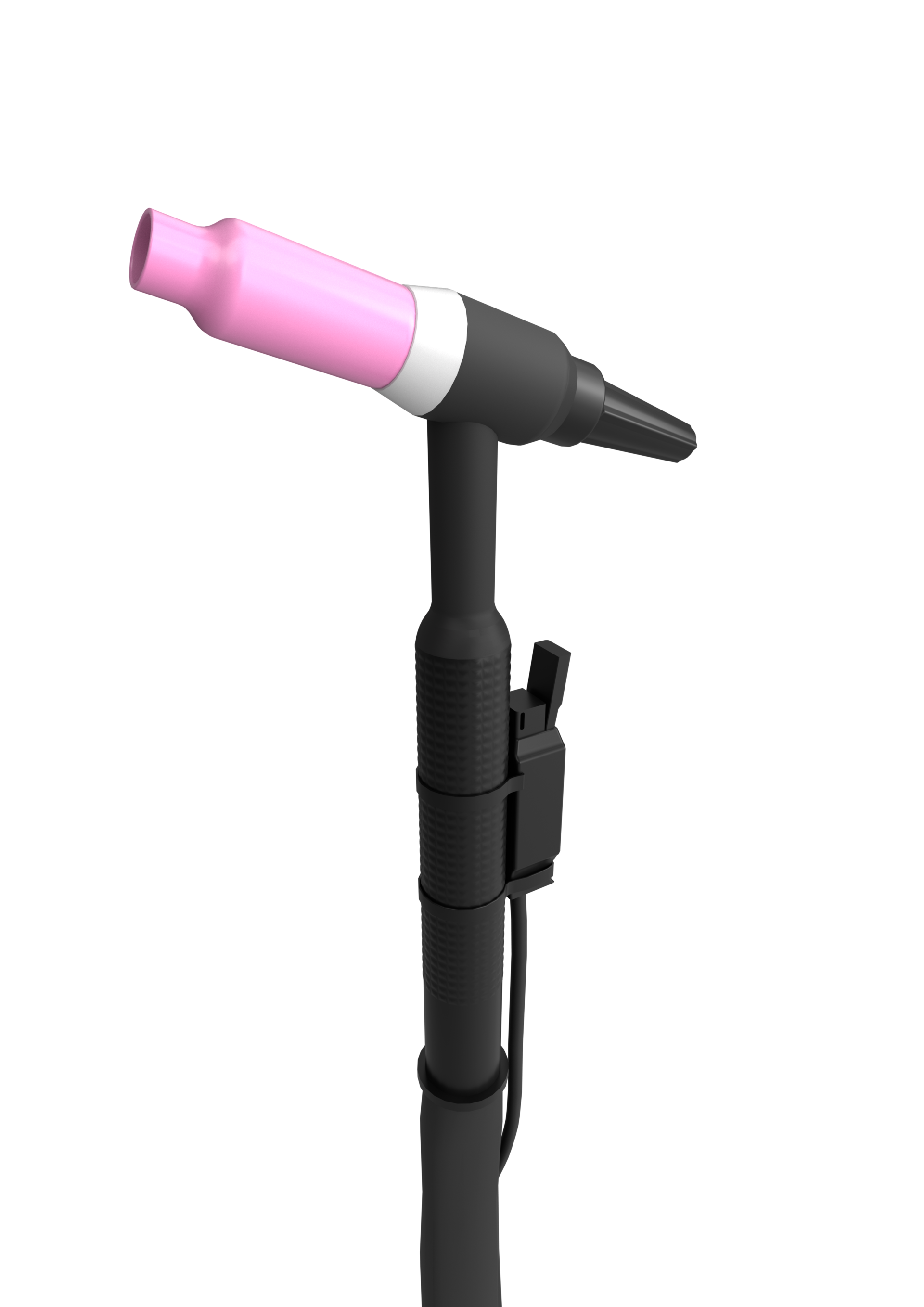

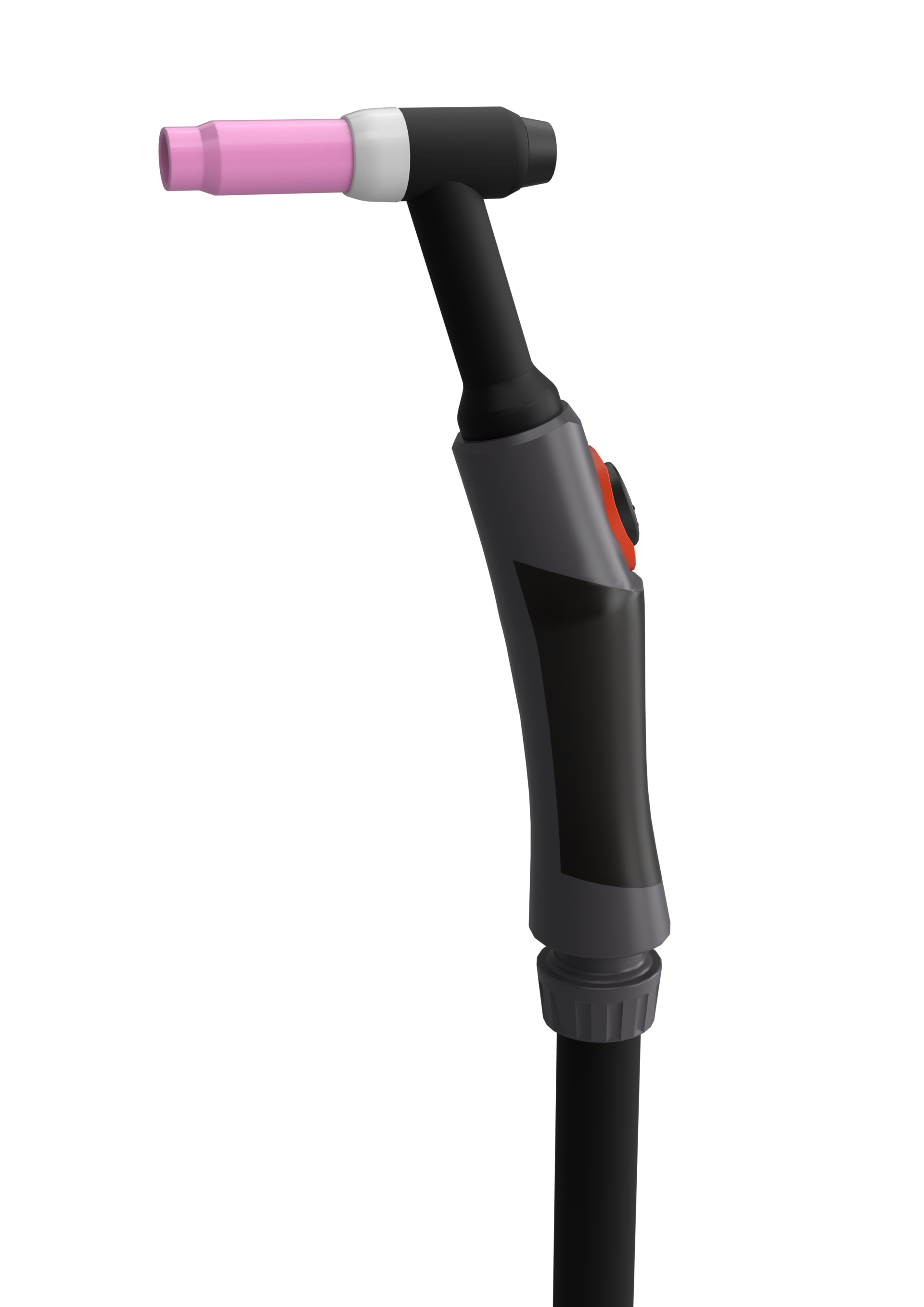

  • 1 TIG torch (with accessories)

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Quick plug
