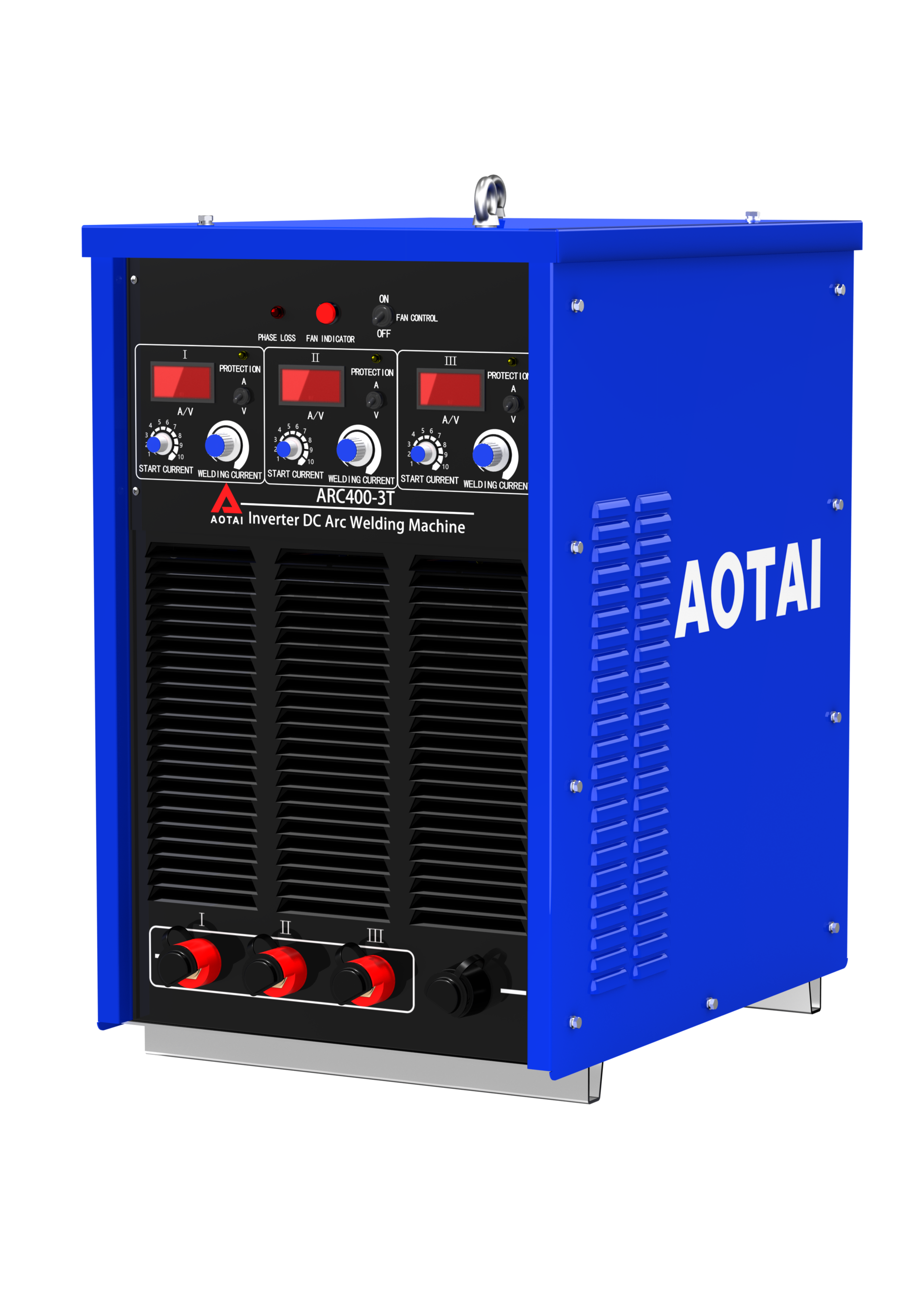

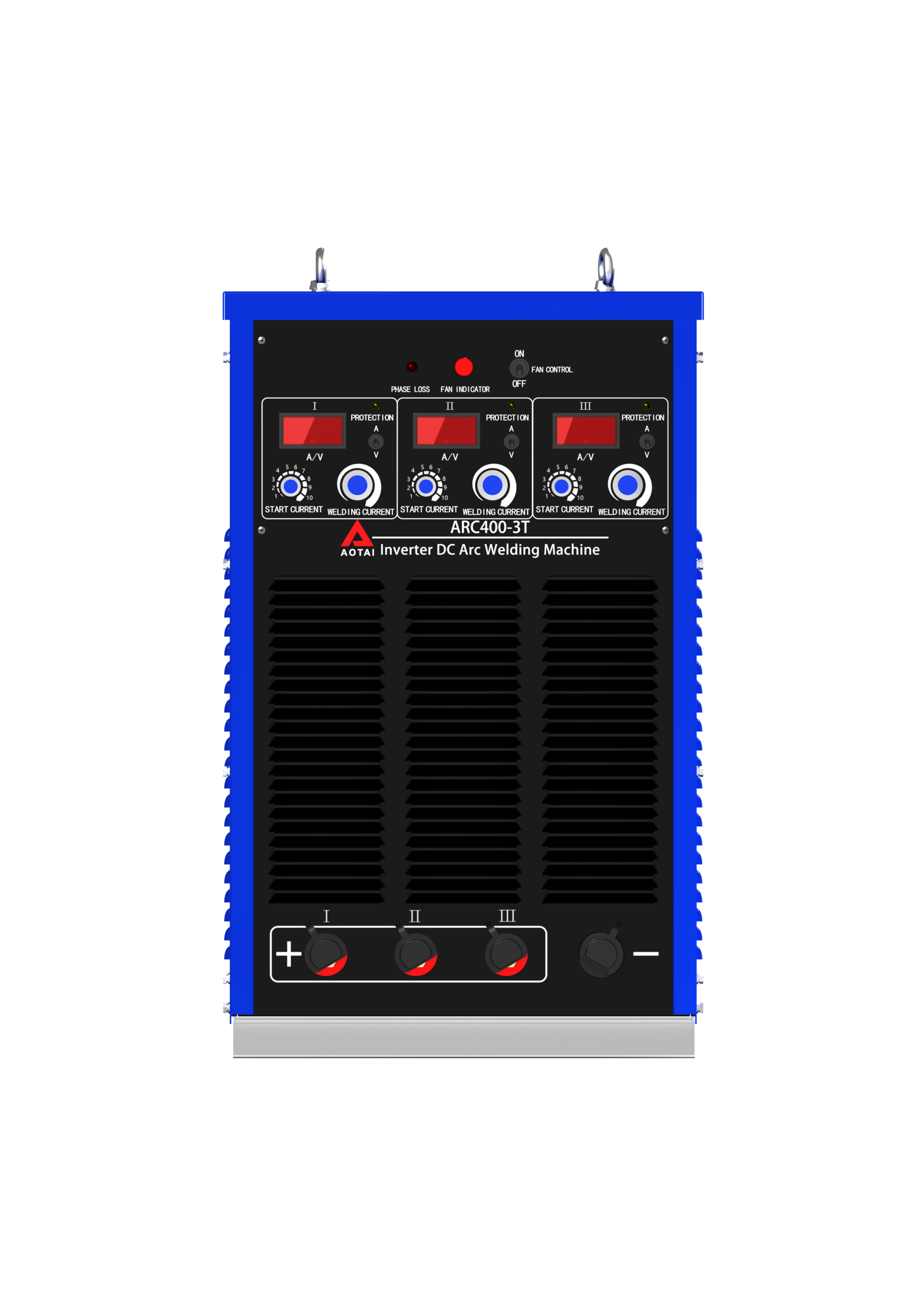

ARC400-3T/6T

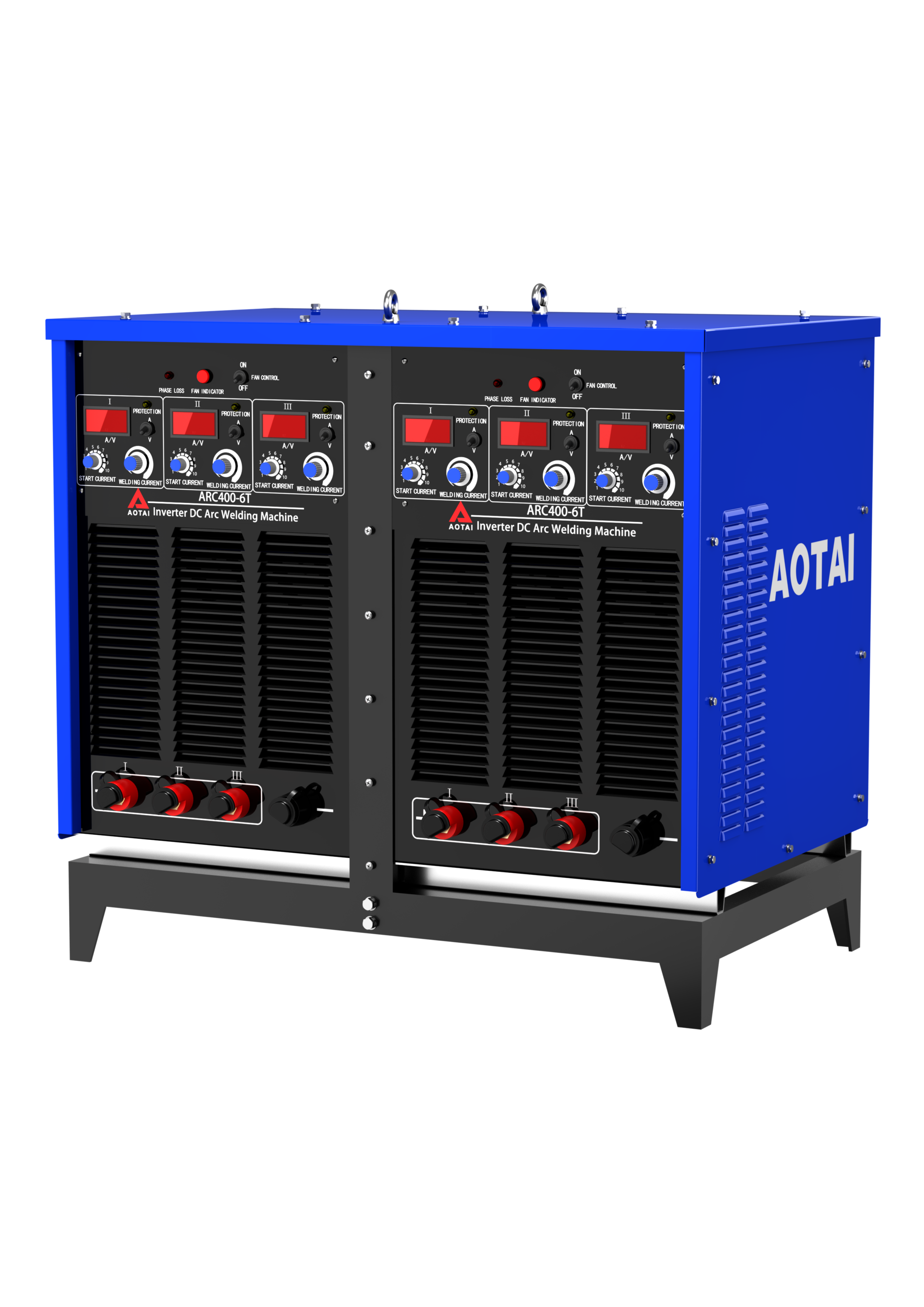

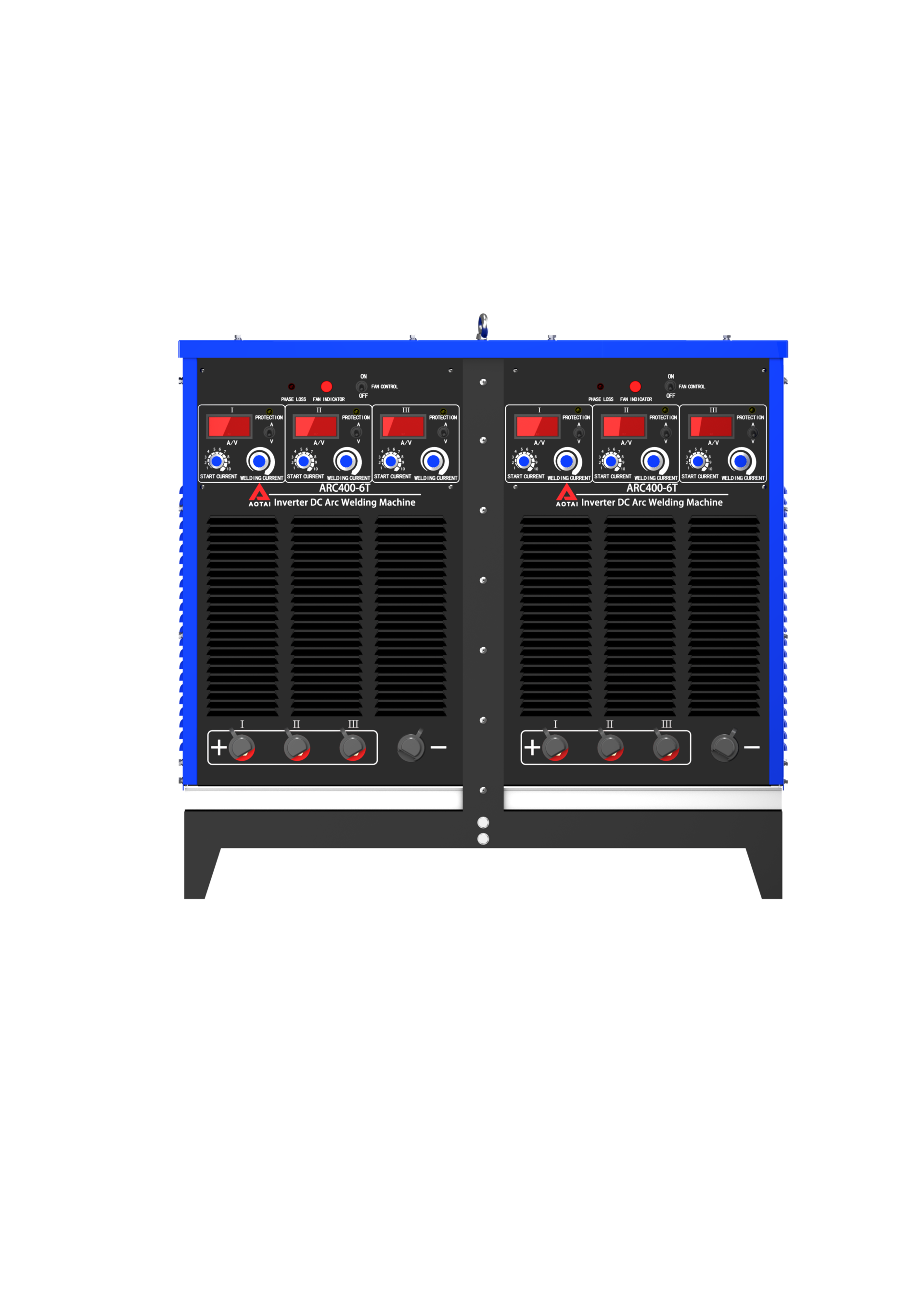

ARC-T series is multi-operators model, it is new generation developed specially to meet industry requirement. The ARC-T integrates three or six single ARC units into one case. Three or six independent outputs allow corresponding  number of welders to work at the same time

Output t34.png  t33.png  t17.jpg       Input t39.png  t41.png       Process t21.jpg  t60.png




Share：

Inquiry
Features
Specification
Application
Accessories
Download


  • Highly integrated: 3 in 1 or 6 in 1, convenient to manage and move

  • Simultaneous operation: operated by multiple people, no  interference, and independent running

  • Robust performance: gouging process, parallel output up to  1200A/2400A



ARC400-3TARC400-6T
Rated input voltage/frequency (V/Hz)3 phase, AC380V±10%, 50 /60Hz
Rated input capacity (KVA)18.7*318.7*6
Rated input current (A)28.4*328.4*6
Duty cycle (40̊C)60%@400A*360%@400A*6
OCV (V)68
Output current range (A)20-400*320-400*6
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)675*505*850675*1045*1000
Weight (kg/lb)120 /265234 /516.8




Standard Equipments（3T）

  • 1 Connected primary cable L=3m

  • 3 Electrode holders

  • 3 Copper connectors

  • 2 Copper connectors

Standard Equipments（6T）

  • 2 Connected primary cable L=3m

  • 6 Electrode holders

  • 6 Copper connectors

  • 4 Copper connectors
